Stone Burier for tractors, rotary tiller - DFU-100

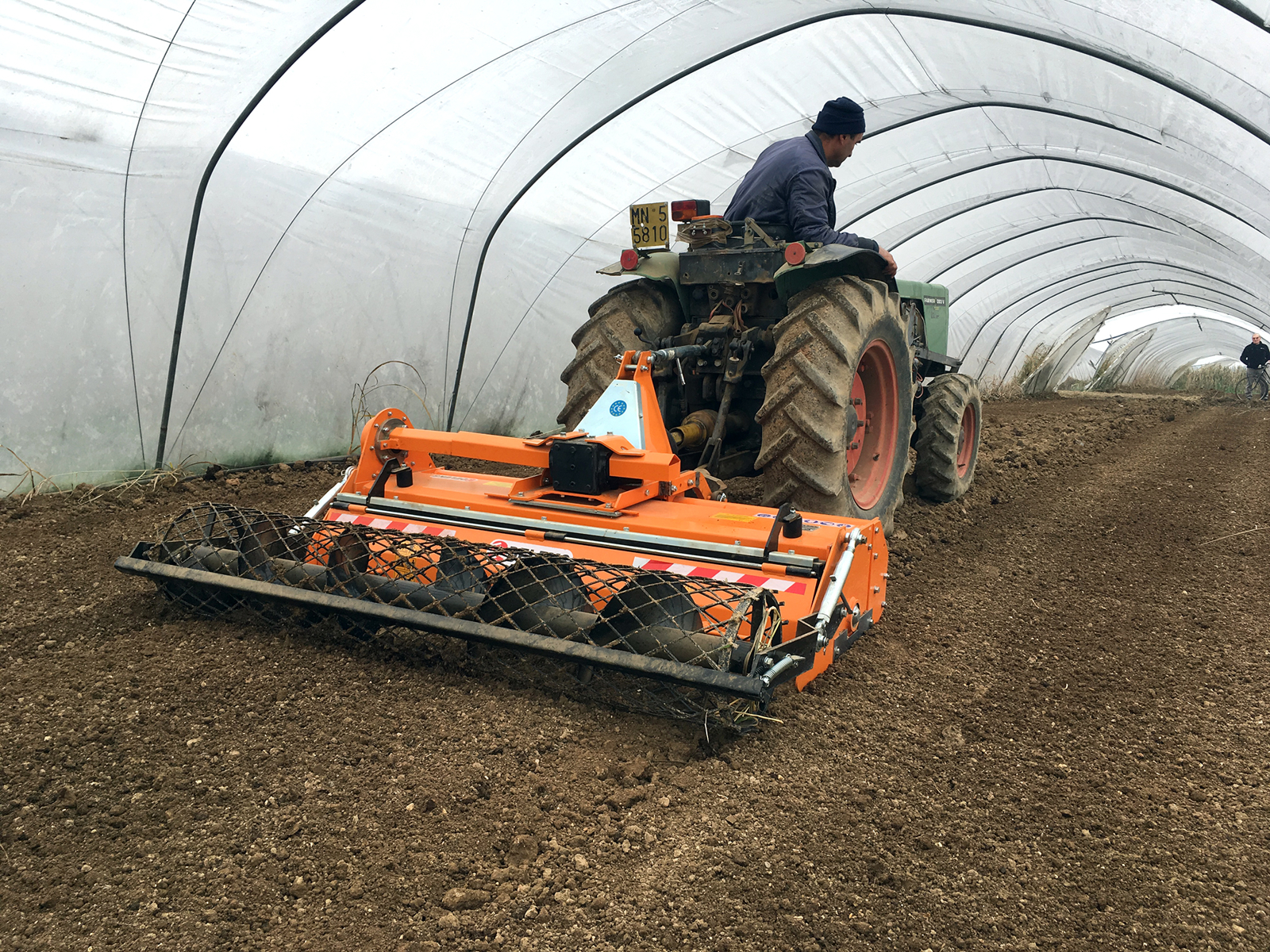

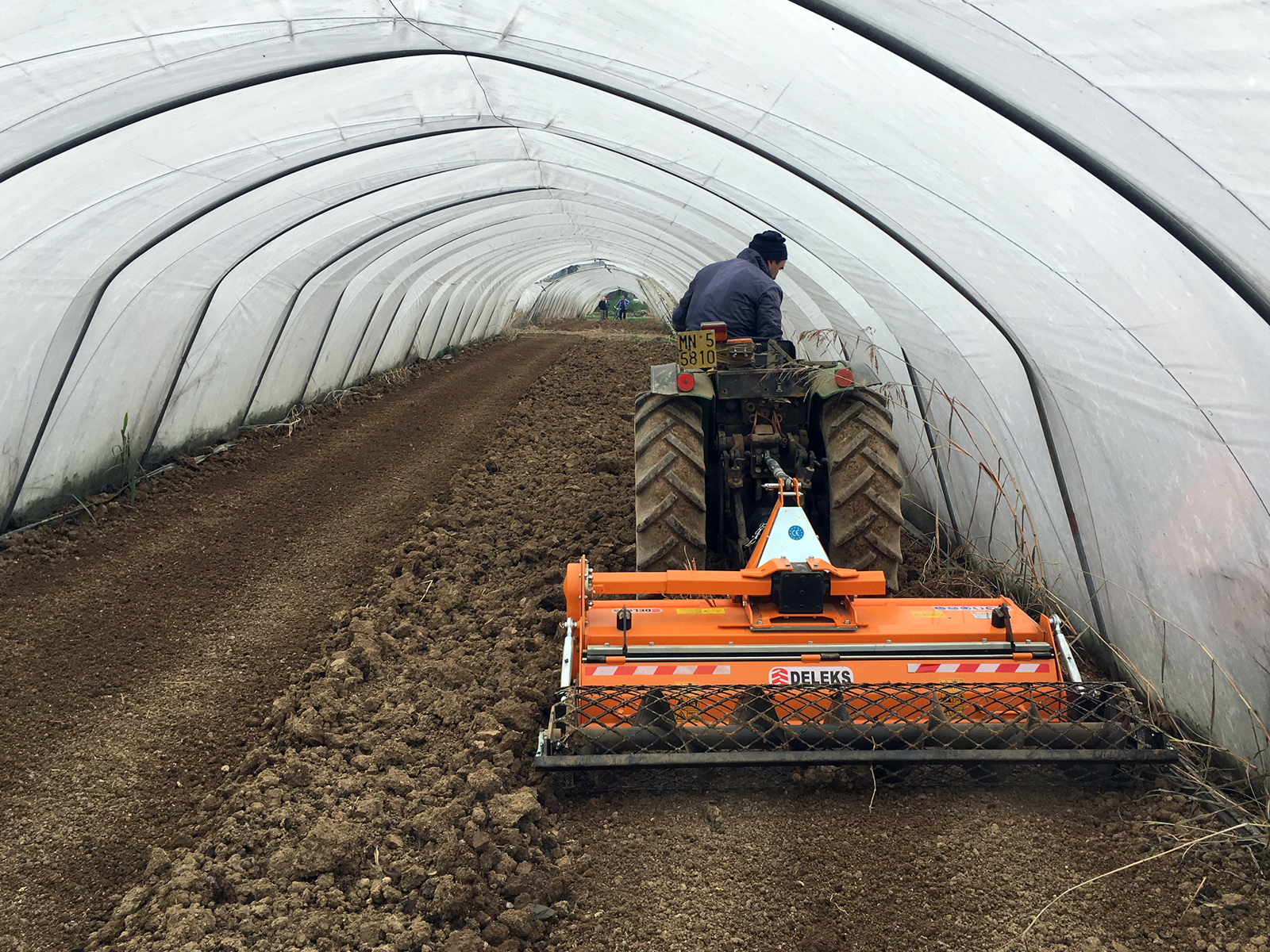

Field test
DETAILS

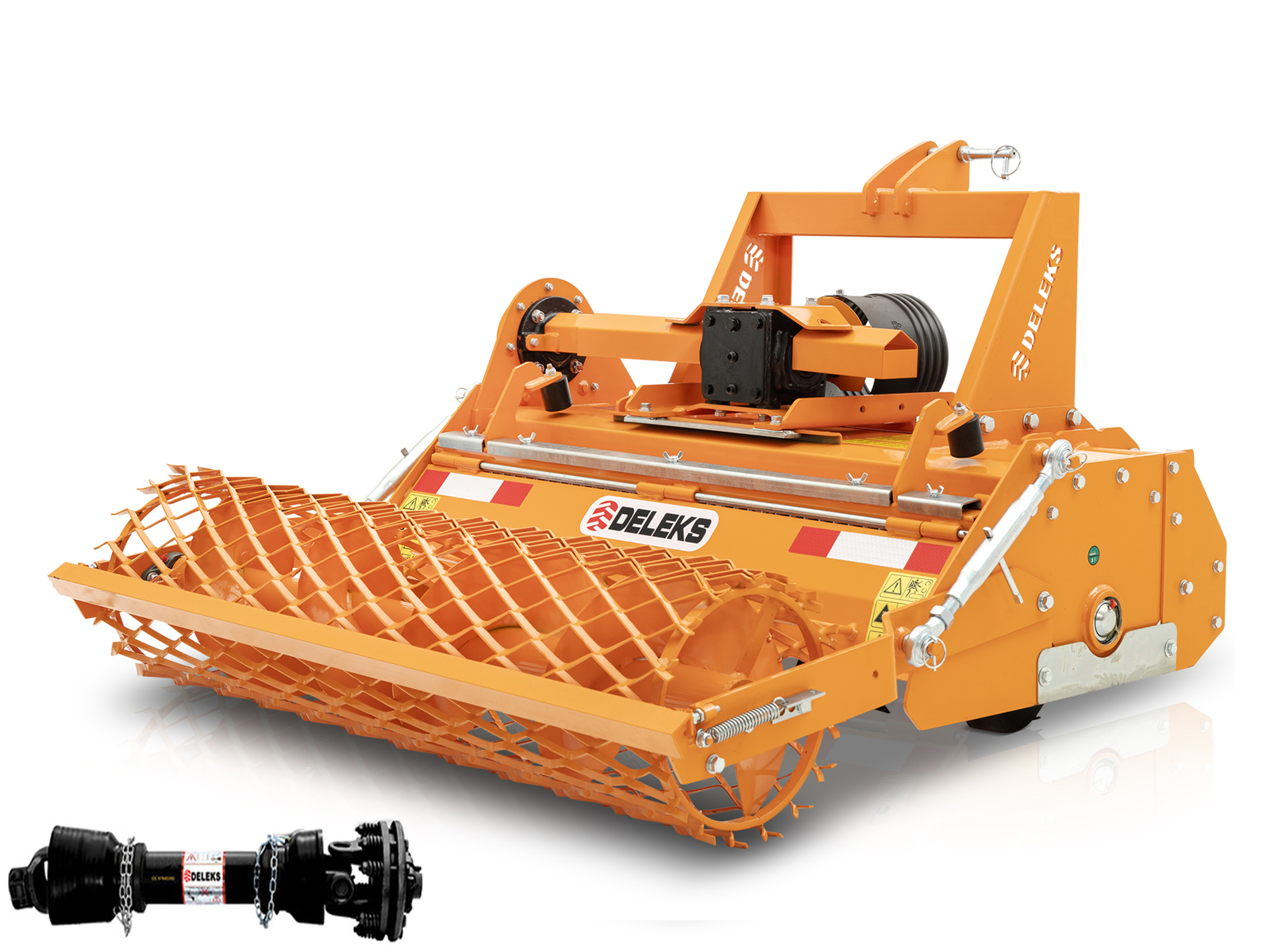

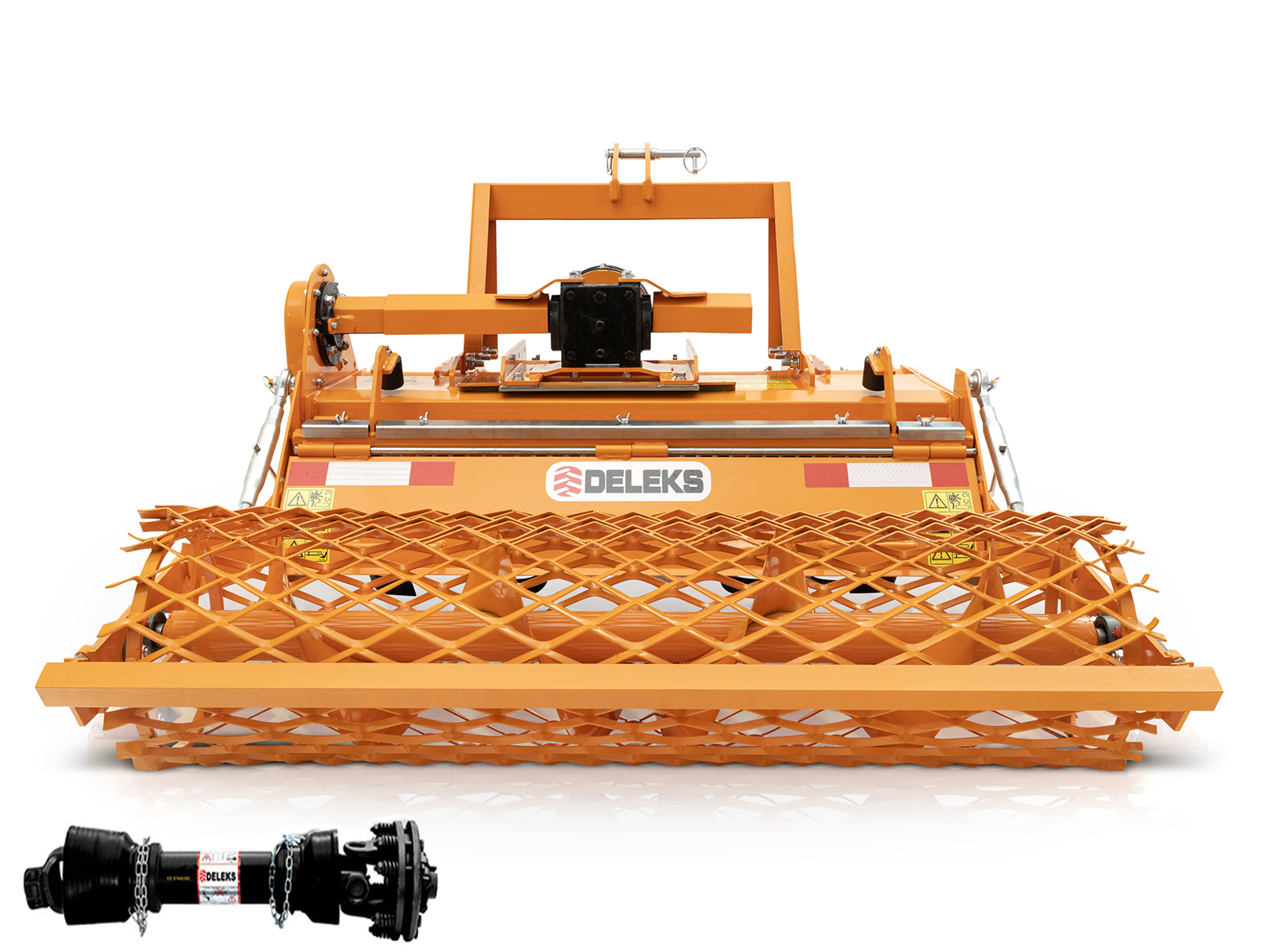

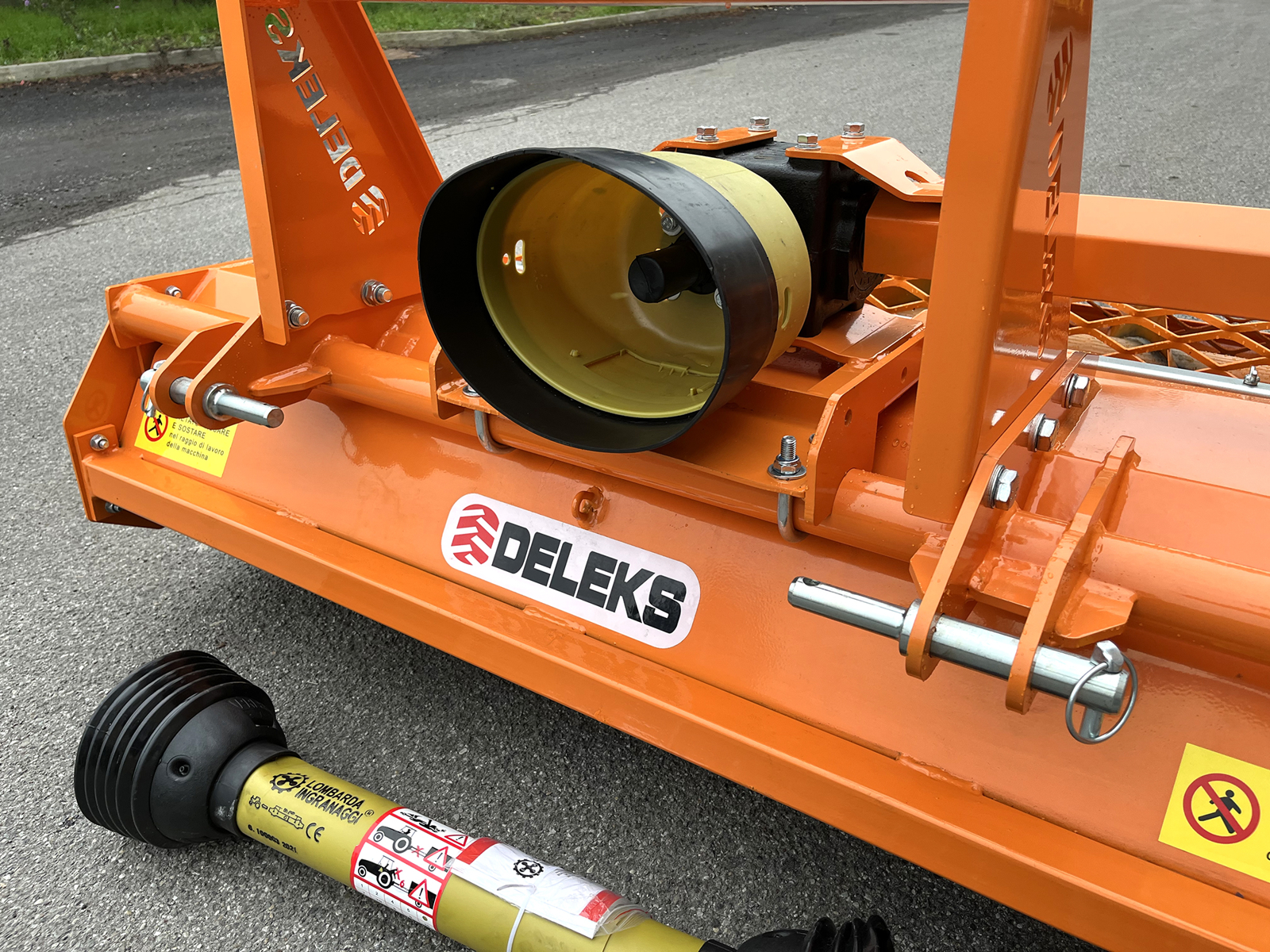

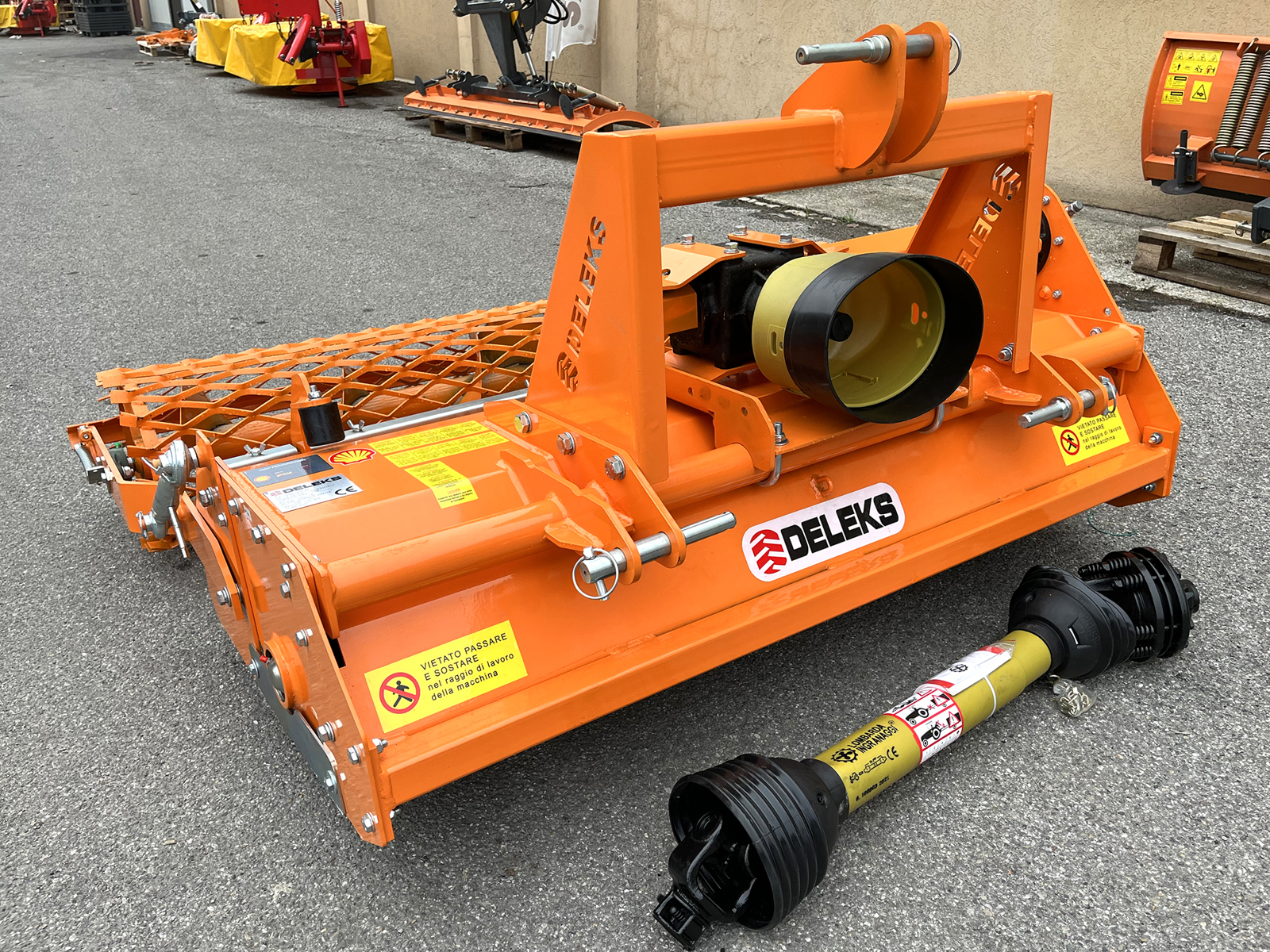

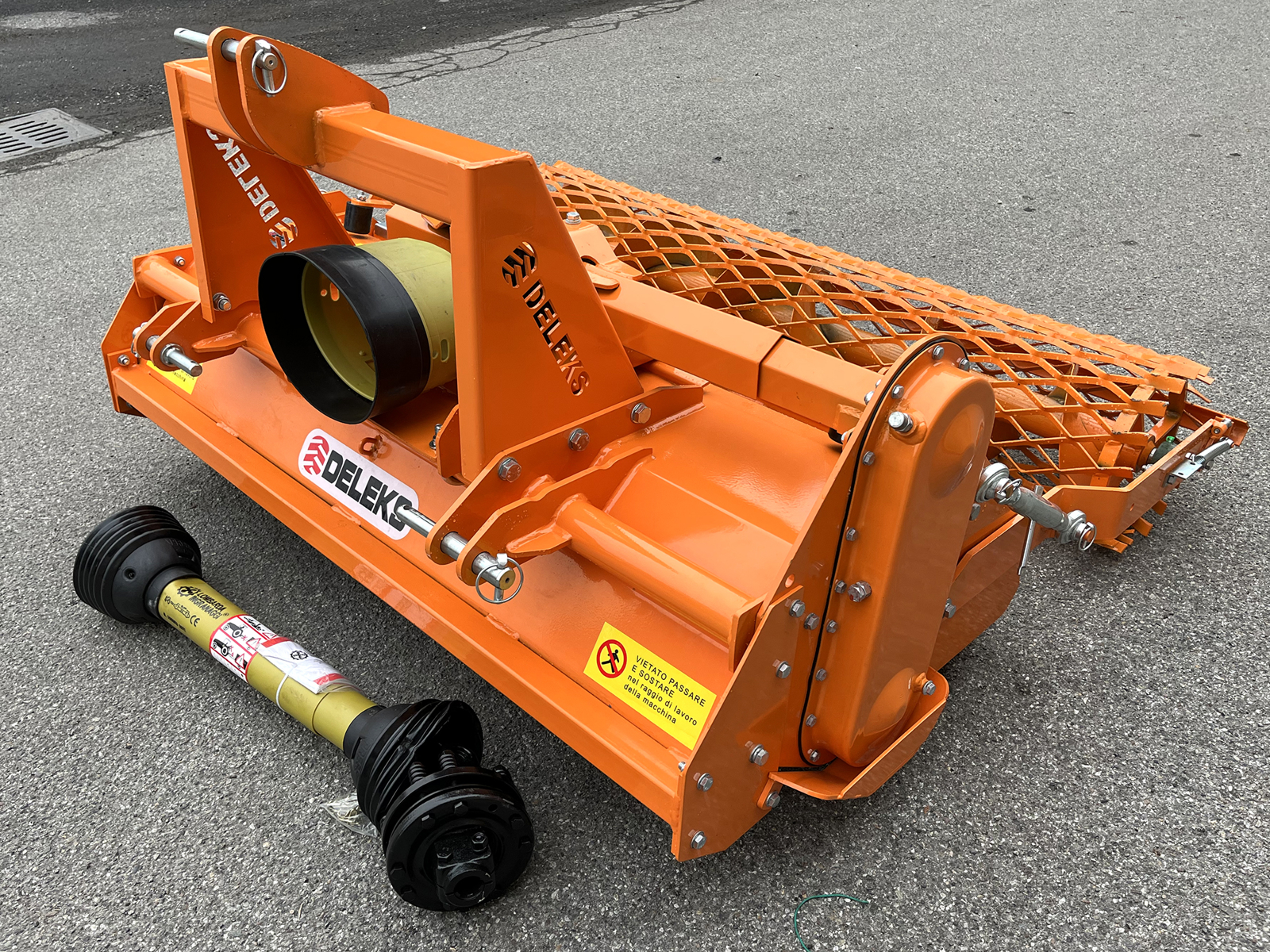

Stone Burier DELEKS® - 95cm / 290kg - Rotovators with rear roller for tractors - Pto shaft CE included.
OVERVIEW

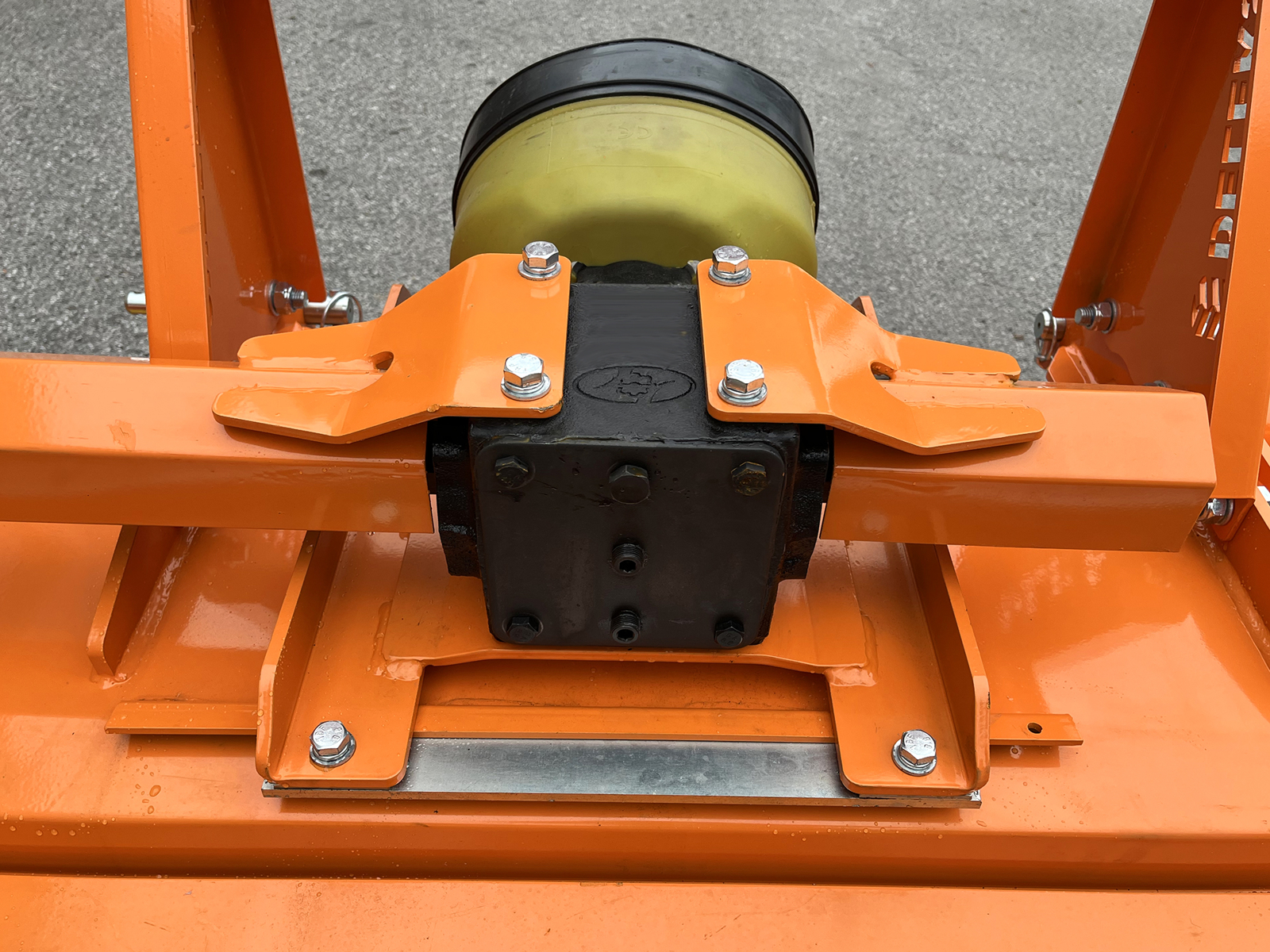

DFU-100 Stone Burier for compact tractors 18-45hp e.g New Holland Boomer 25-30, John Deere 2-3 Series, Kubota B, Iseki, Yanmar, Mahindra, Mitsubishi, Ferrari, Pasquali etc. The DFU-100 Stone-Burier is the perfect machine to prepare a smooth seed bed in any type of soil, including heavy soils and hard clay. It has been designed for greenhouse cultivation, preparing the soil for planting, flower beds and gardens. Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage and rear roller) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
Stones are buried in one pass without having to return to the same row twice.
Pto shaft CE included.
Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.
Automatic chain tensioner.

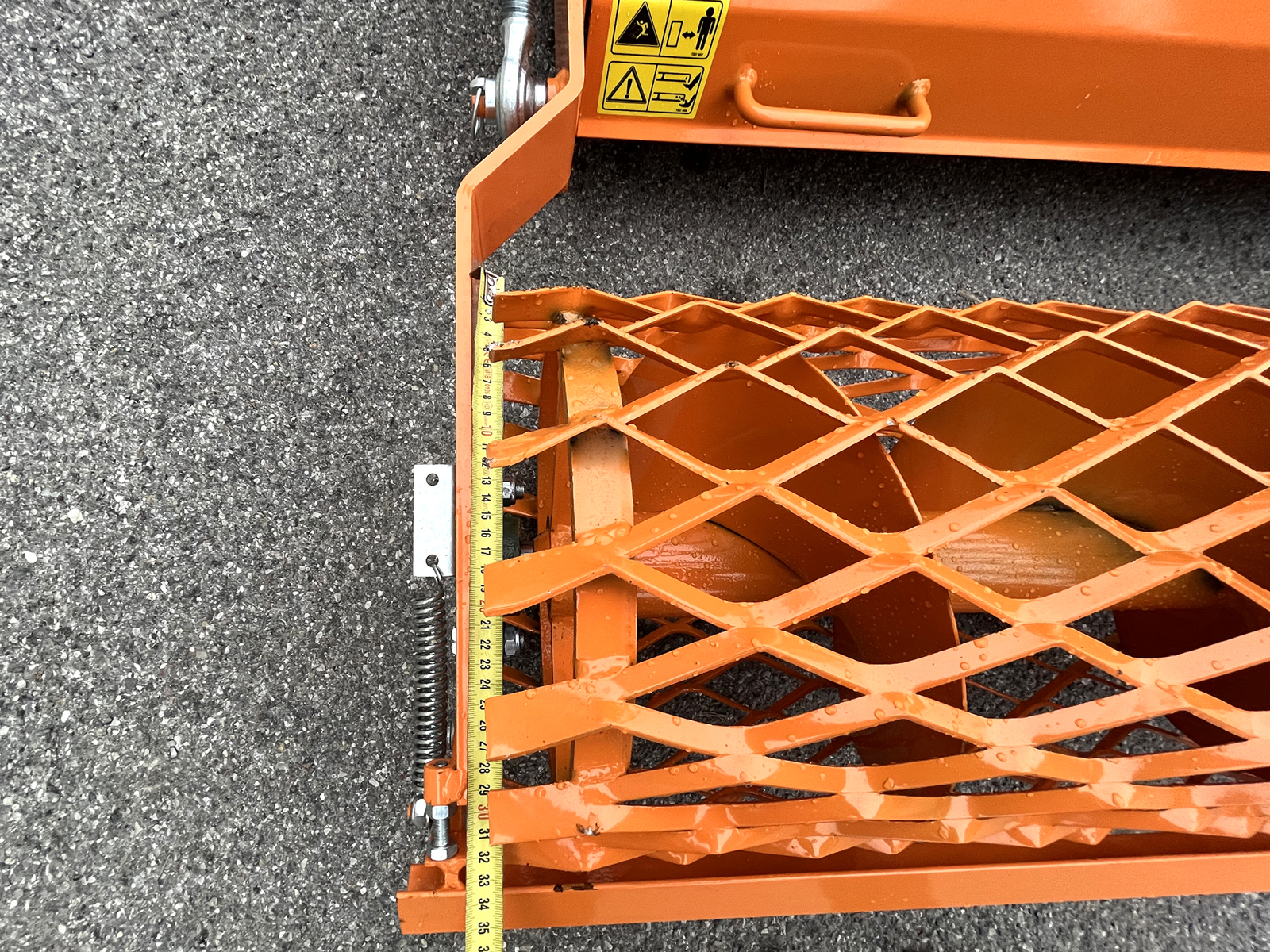

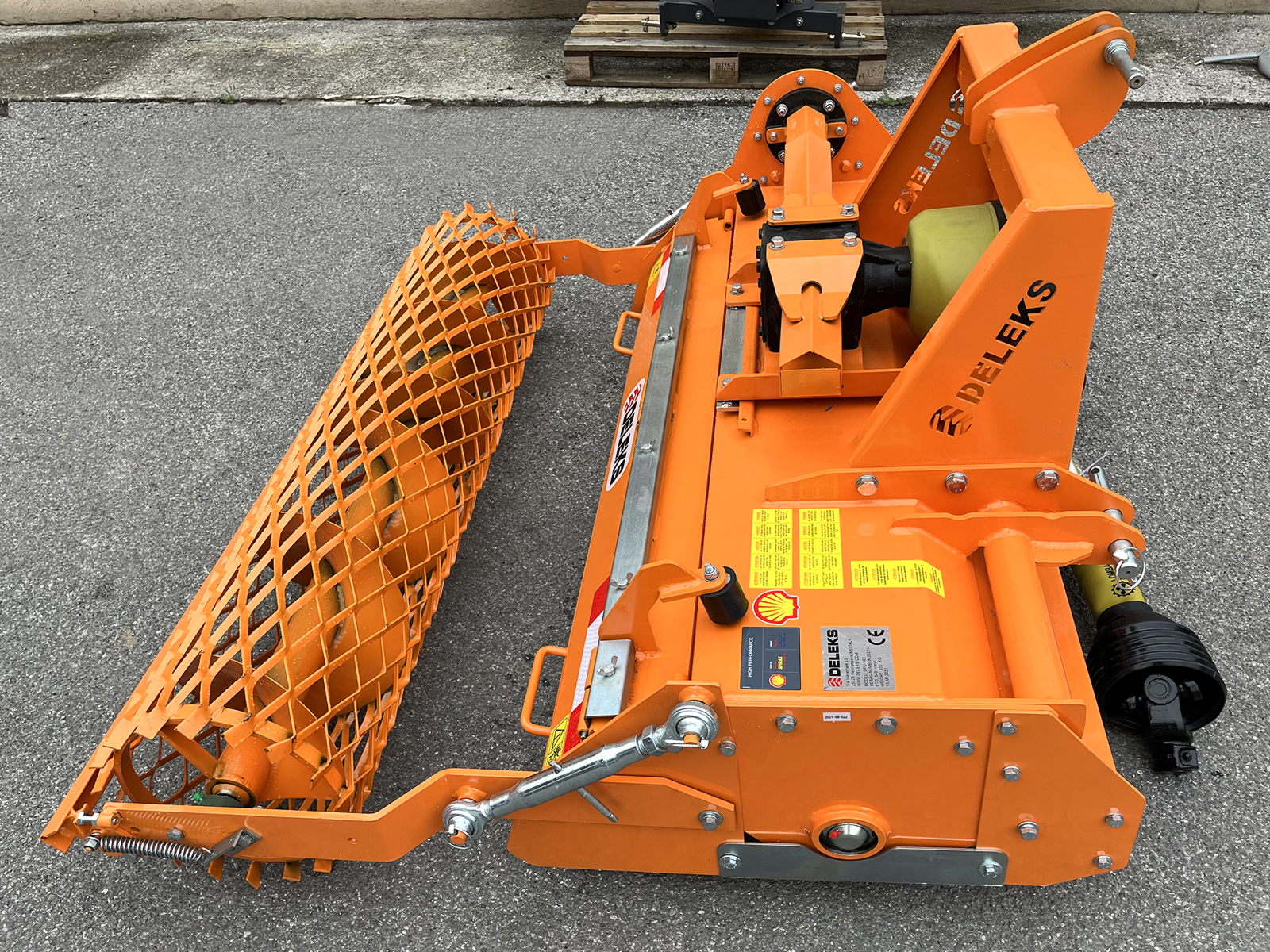

Adjustable rear net roller.
CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 1180.0 mm |
| Weight | 290.0 kg |

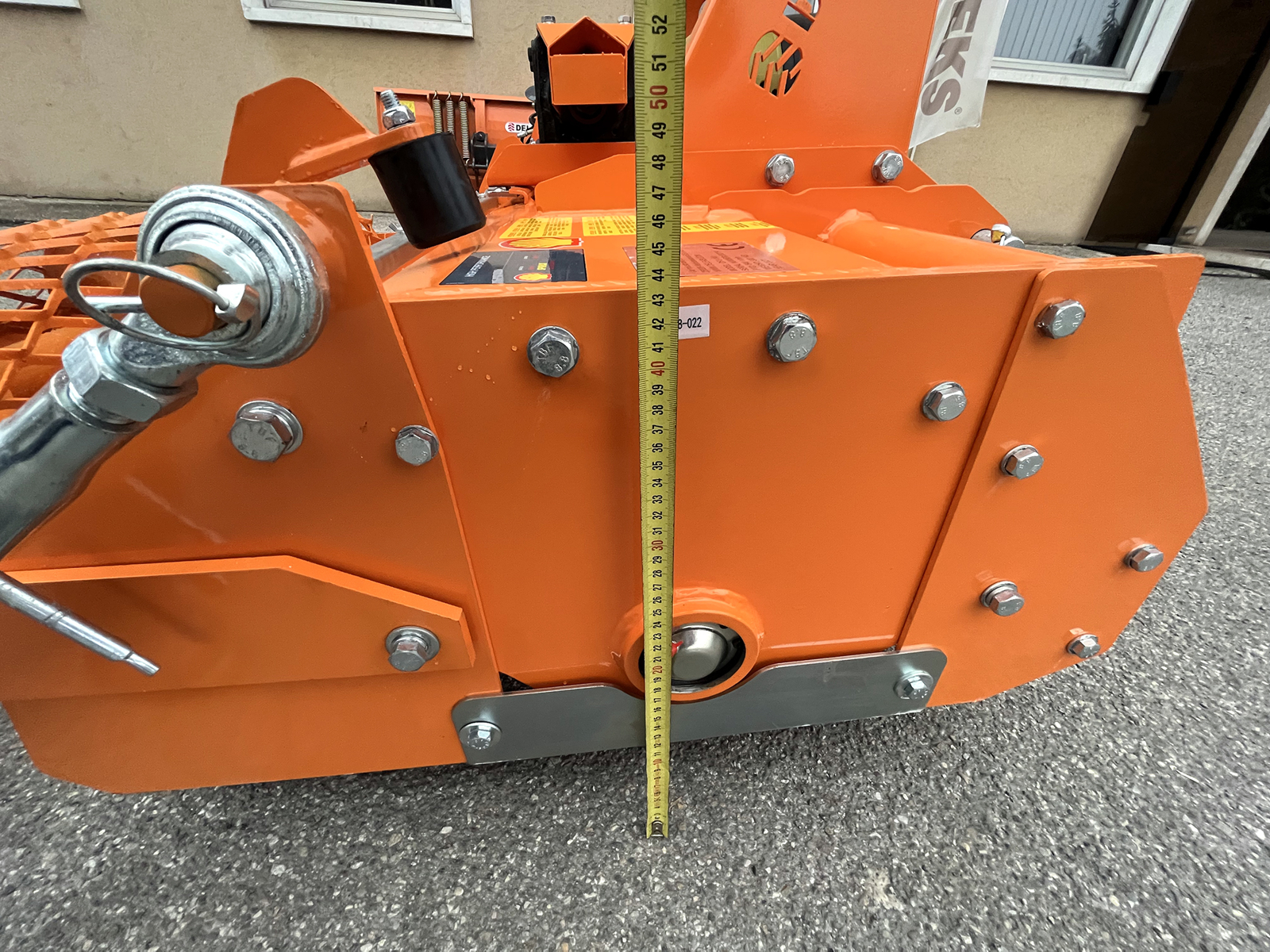

| Overall height | 900.0 mm |
| Tractor Power Range | 18 - 45 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | Central |
| Spacing between the 2 lower points | 580.0 - 830.0 mm |
| Overall length | 1230.0 mm |
| Rotor: diameter | 64.0 mm |
| Rotor: sheet thickness | 10.0 mm |

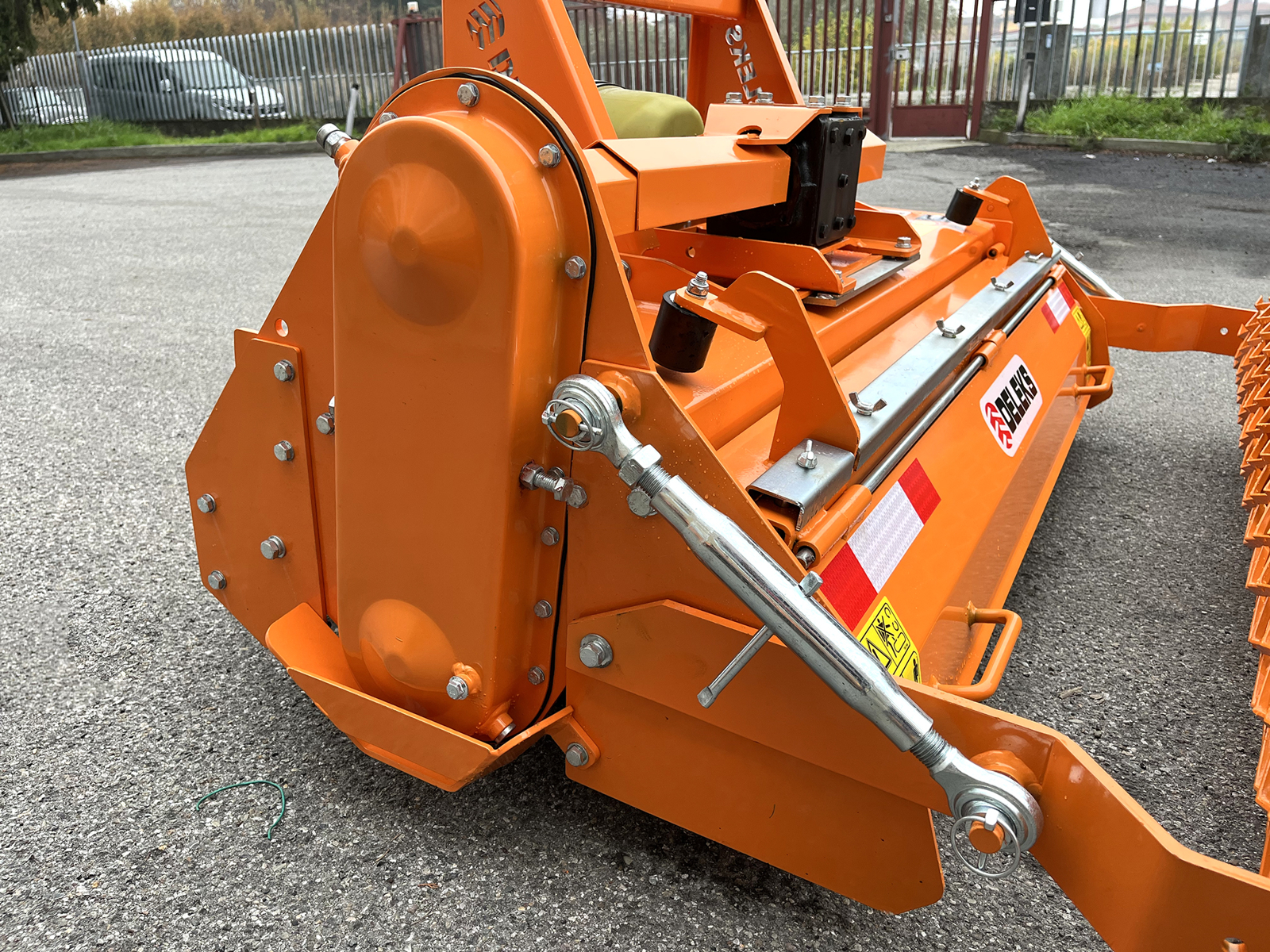

| Transmission | Chain |

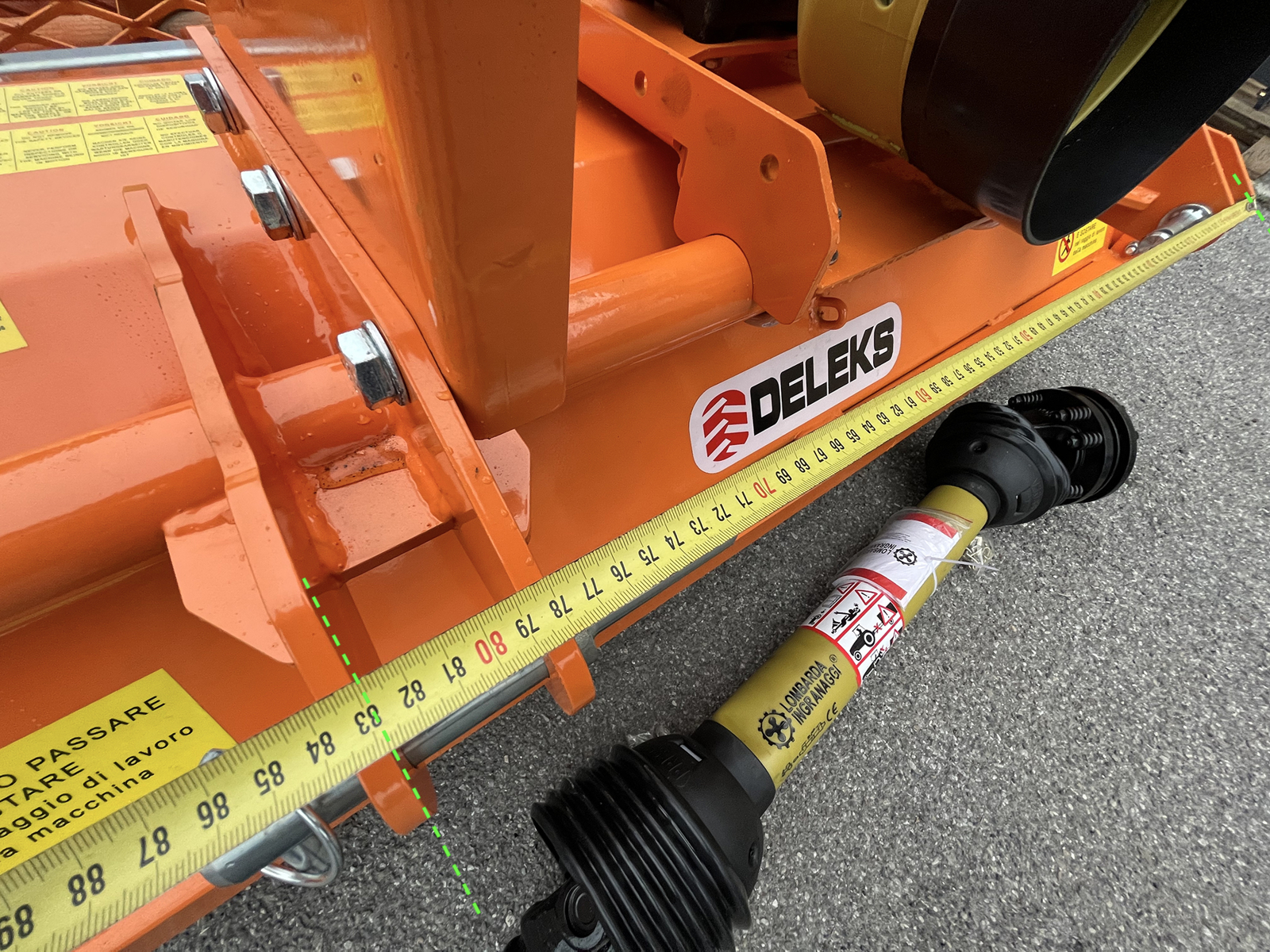

| Effective Working width | 950.0 mm |
| Working Depth Range | 160.0-200.0 mm |

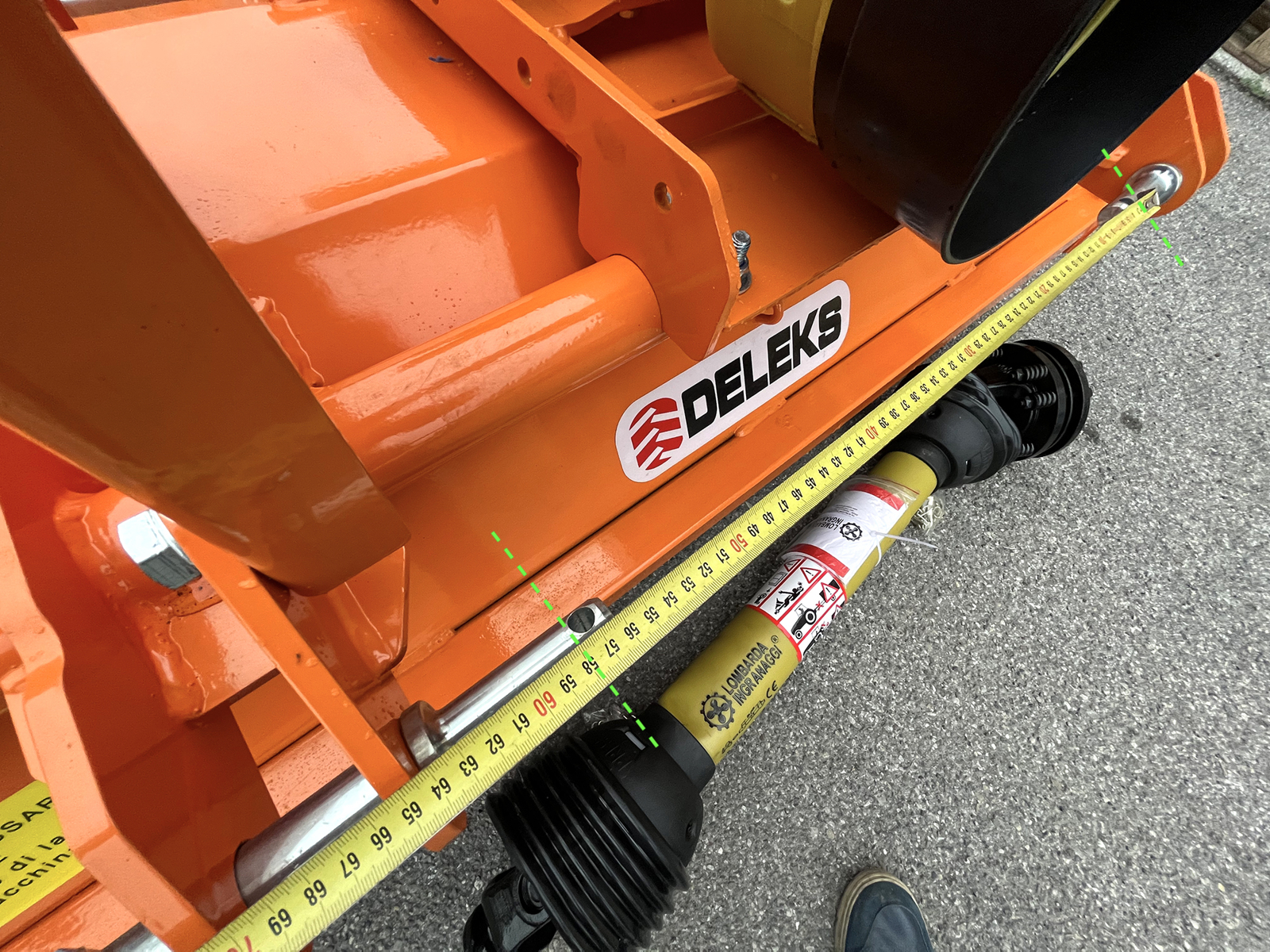

| Distance between pto attachment and base | 470.0 mm |
| Pto shaft | CE 4x800 mm |
| Rotor: diameter with blades | 415.0 mm |
| Rotor: bearings type and sizes | "GB276-6306(R) GB276-6209(L)" |
| Rotor: flanges | 6 |
| Number of Blades per flange | 4 |
| Blades: quantity | 20 |
| Blades: height/width | 170.0 / 65.0 mm |
| Blades: curve length | 255.0 mm |
| Blades: distance between holes | 45.0 mm |
| Blades: diameter of the holes | 13.0 mm |
| Blades: thickness | 6.0 mm |
| Gearbox | 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| RPM Rotor speed | 216 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Blades: weight | 770.0 g |
| Packing sizes | 1000.0*1250.0*900.0 mm |
