Hydraulic hedge cutter bar 180 cm (71 in) HR-180, single-blade finger bar with 100 cc motor for mini diggers and mini excavators of 1.8 to 2.5 tonnes
DETAILS

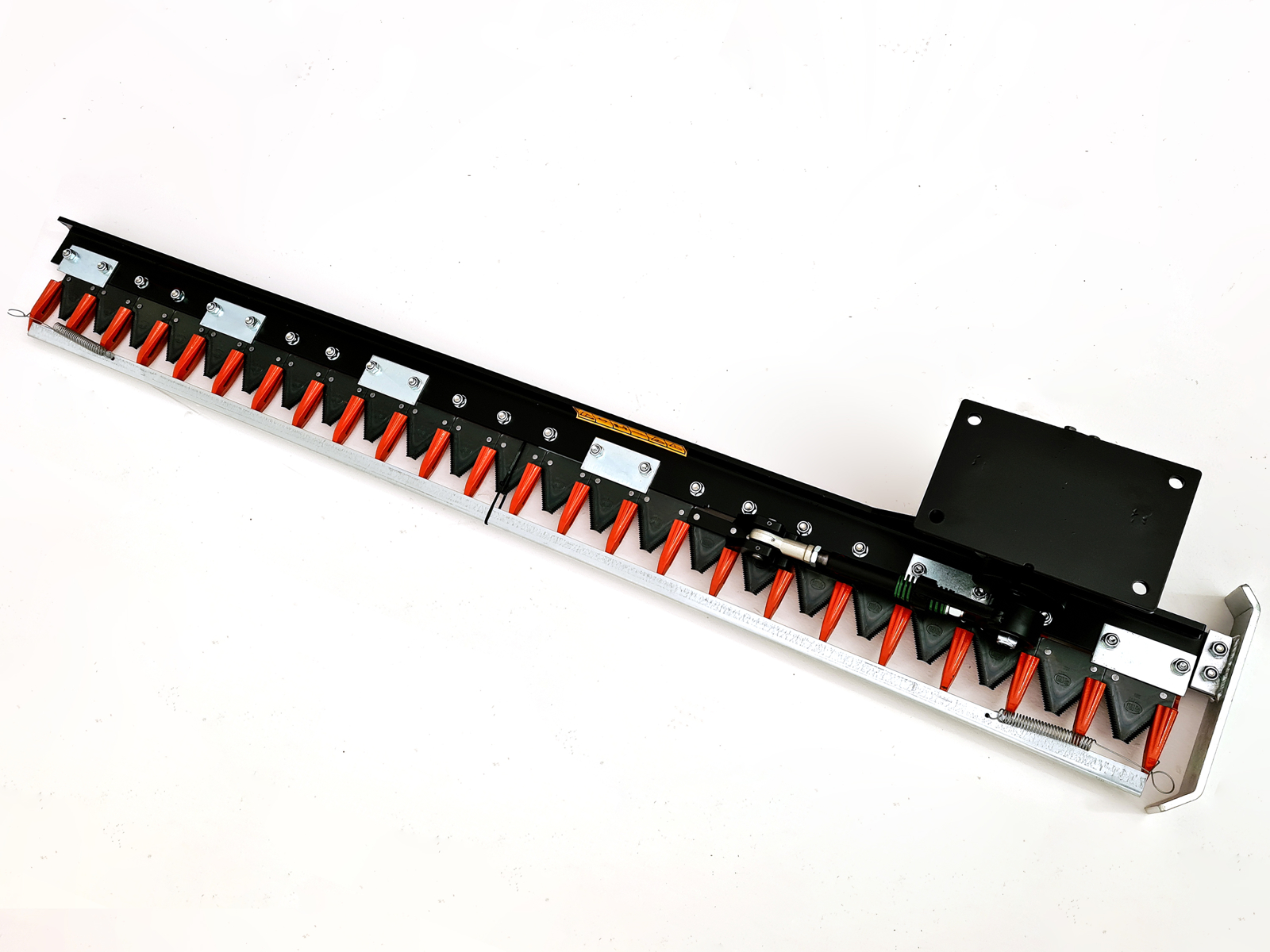

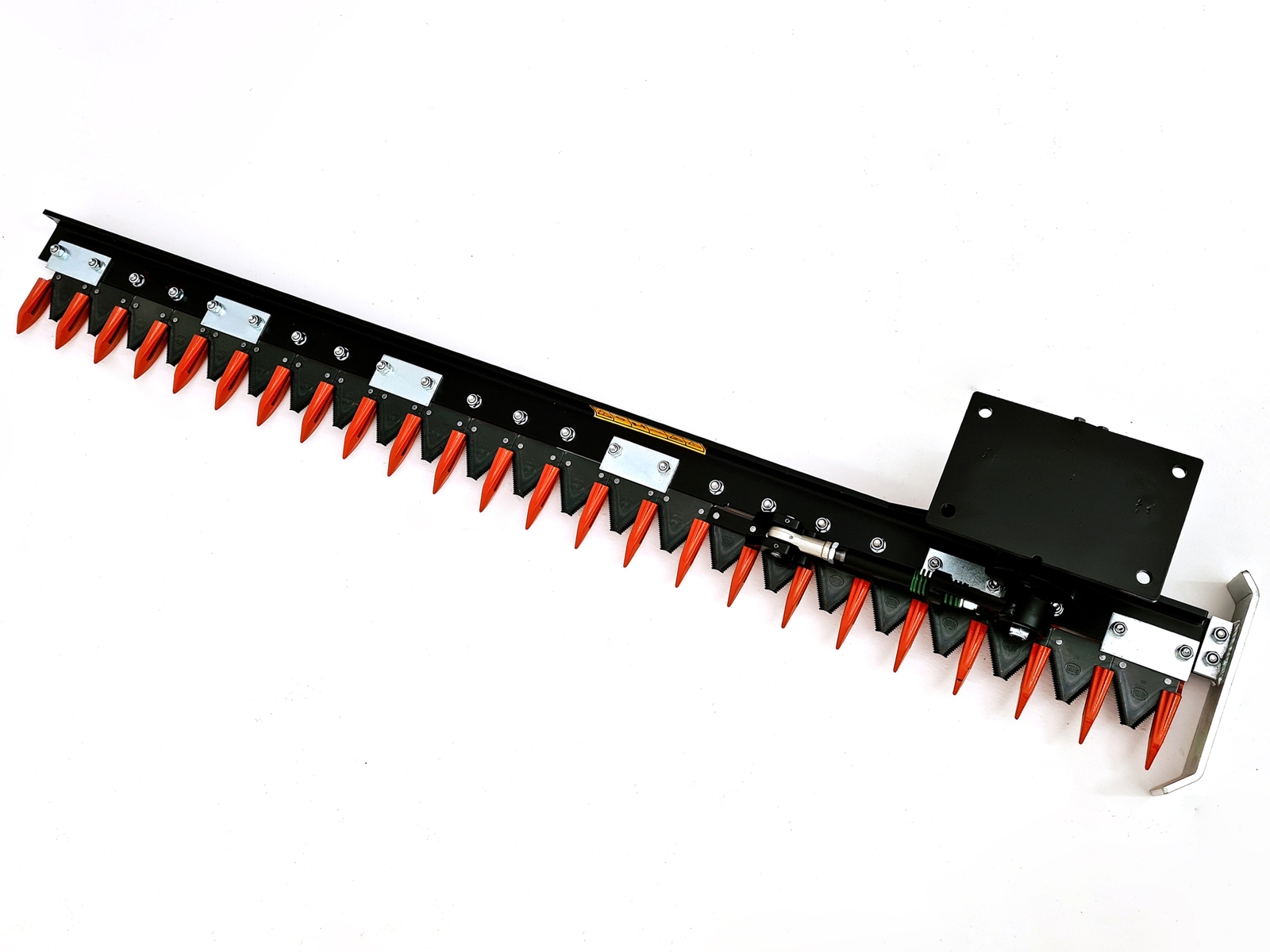

Hydraulic hedge cutter bar with a 180 cm (71 in) cut, the DELEKS® HR-180: a single-blade finger bar hedge cutter with a 100 cc motor, for mini diggers and mini excavators of 1.8 to 2.5 tonnes, Made in Italy, built by DELEKS. It cuts hedges and small branches up to 3 cm (1.2 in) thick along road verges, ditches, banks and rows: 23 serrated blades run between the double fingers, which act as the counter-blade, and leave a clean cut. The 100 cc Caproni hydraulic motor is made for machines that deliver more oil; for mini diggers of 1.3 to 1.8 tonnes and for tractor hedge cutter arms there is the HR-180-S, the same bar with a 50 cc motor. It bolts on with its 4-hole plate and runs at 140 to 180 bar (2,030 to 2,610 psi). It weighs 70 kg (154 lb) and comes with a 2-year warranty and free delivery within the EU.
Which machines it fits

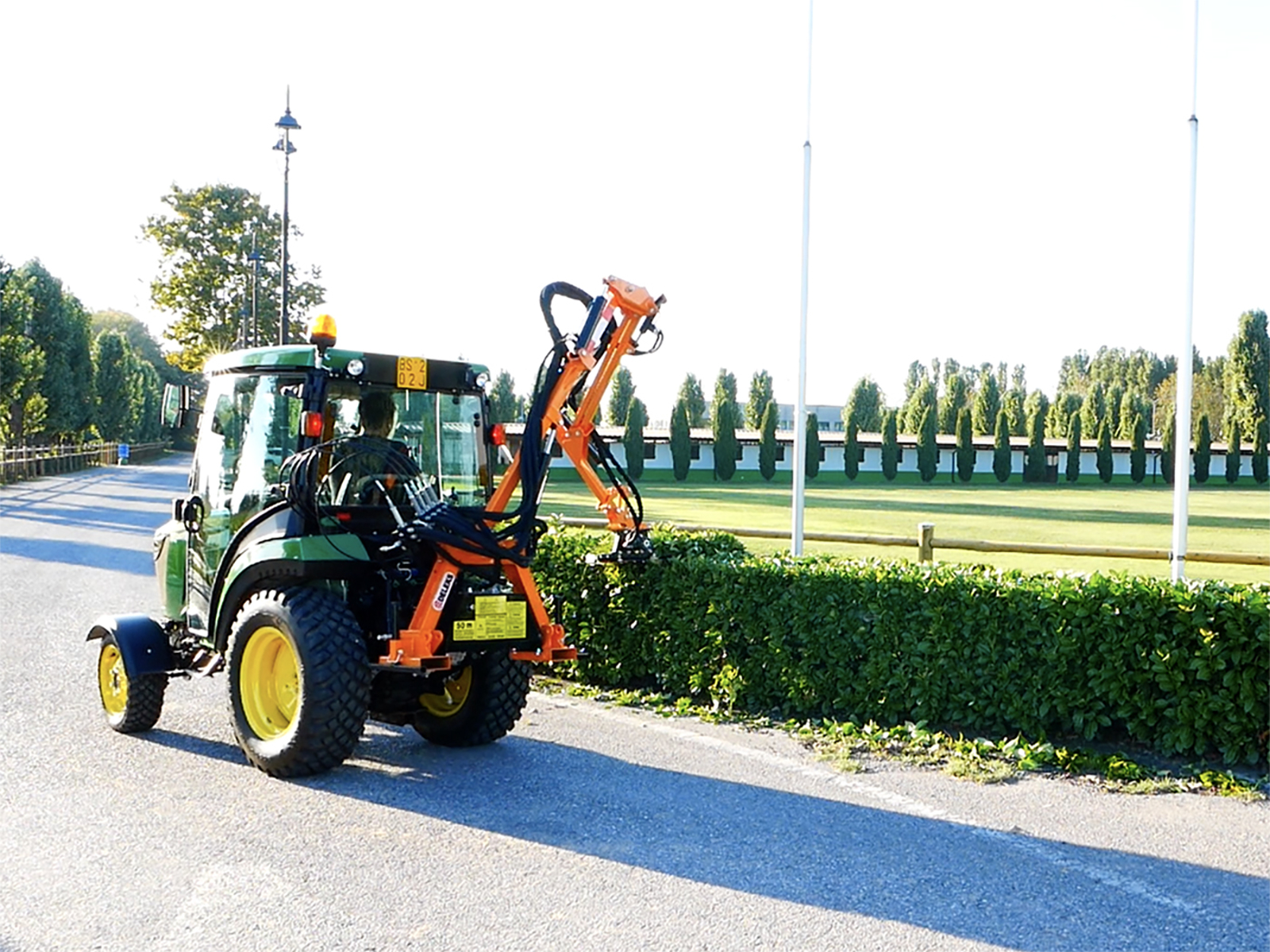

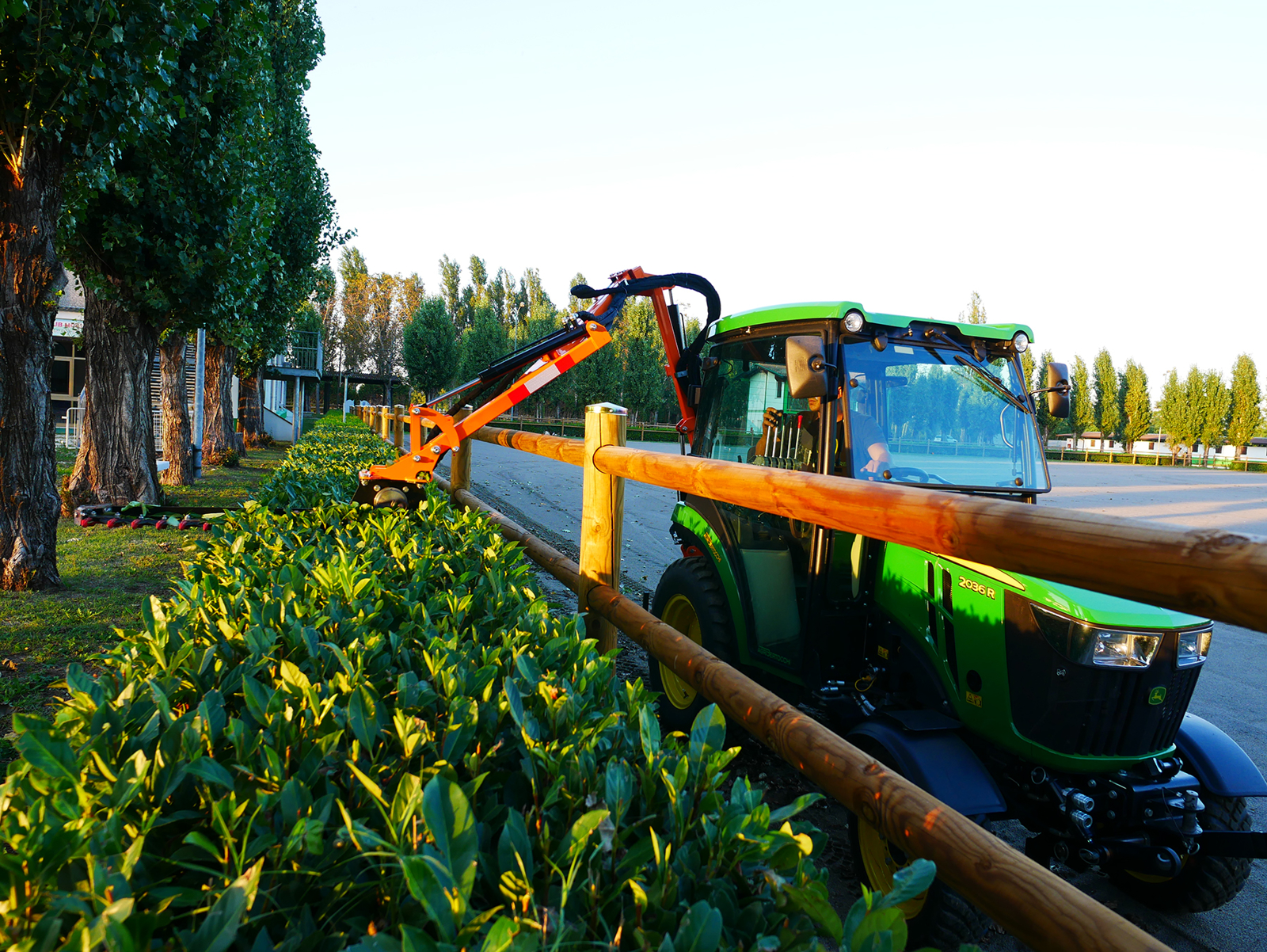

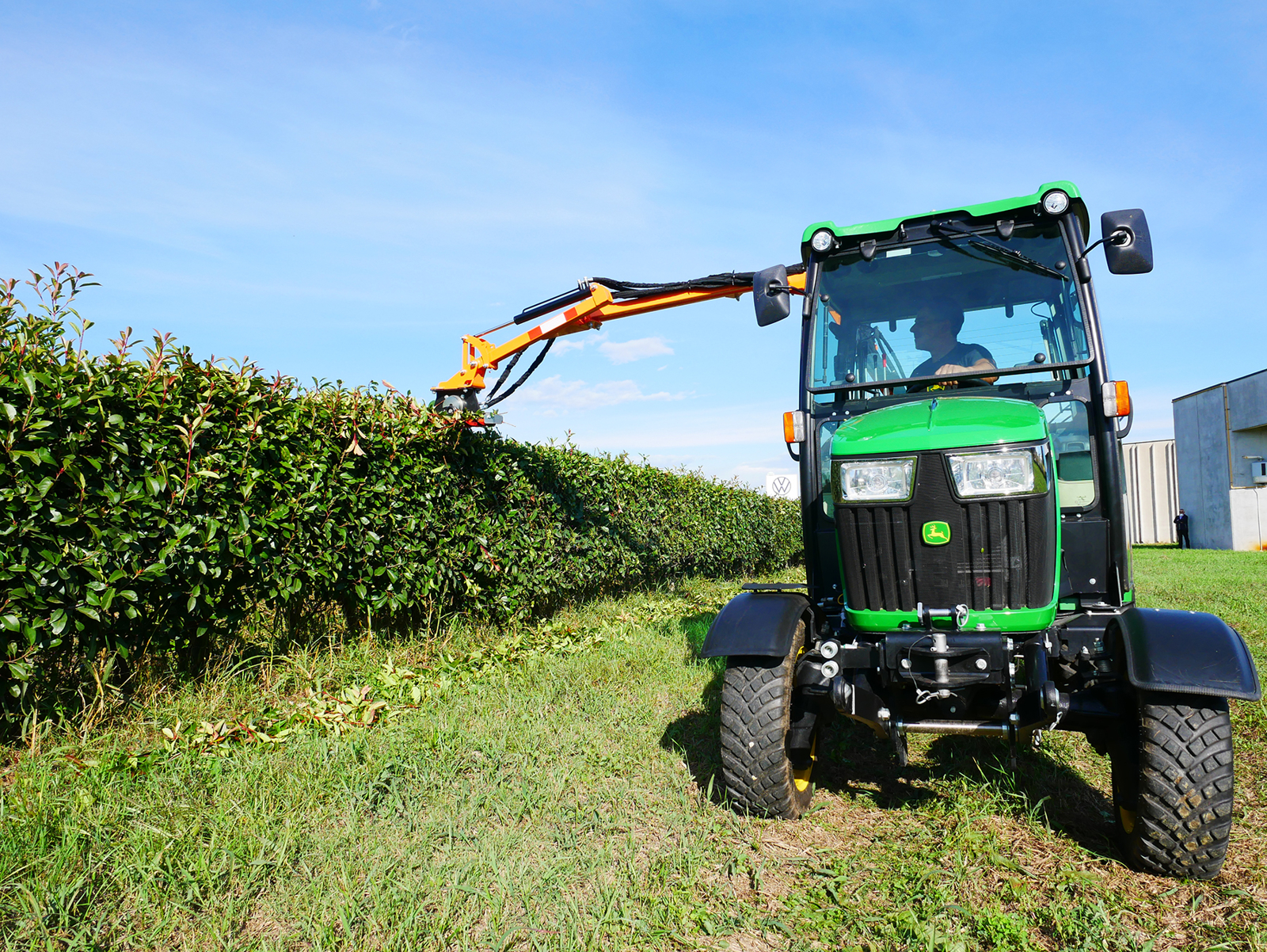

The HR-180 fits mini diggers and mini excavators of 1.8 to 2.5 tonnes with an auxiliary hydraulic line and tractor hedge cutter arms: it is the bar of the DELEKS® AIRONE-TR arms and also fits the AIRONE arms. The weight range is a guide: what counts is the oil flow of the auxiliary line, to be checked before ordering. Among the DELEKS® mini diggers and mini excavators, it fits the S180. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 180 cm (71 in) cut and an overall width of 188 cm (74 in) it weighs 70 kg (154 lb). The same series also includes the HR-130 (130 cm, 58 kg) and the HR-160 (160 cm, 62 kg): a shorter bar weighs less and is easier to handle with the arm fully extended, a longer one cuts a wider strip at each pass.
HR or HR-S: the choice comes down to oil flow
The HR-180-S and the HR-180 are the same bar: only the hydraulic motor changes, 50 cc on the HR-180-S and 100 cc on the HR-180. Blade speed depends on the machine's oil flow and on the motor's displacement: for the same flow, the smaller motor drives the blades faster. A bigger mini excavator delivers more oil: with the 50 cc motor the blades would run too fast, with a risk of breaking the bar, which is why above 1.8 tonnes the HR-180 is the one to choose. So the choice between the two does not depend on the job, which is the same, but on the oil flow of your mini digger.
Hydraulic connection: pressure, flow and return line

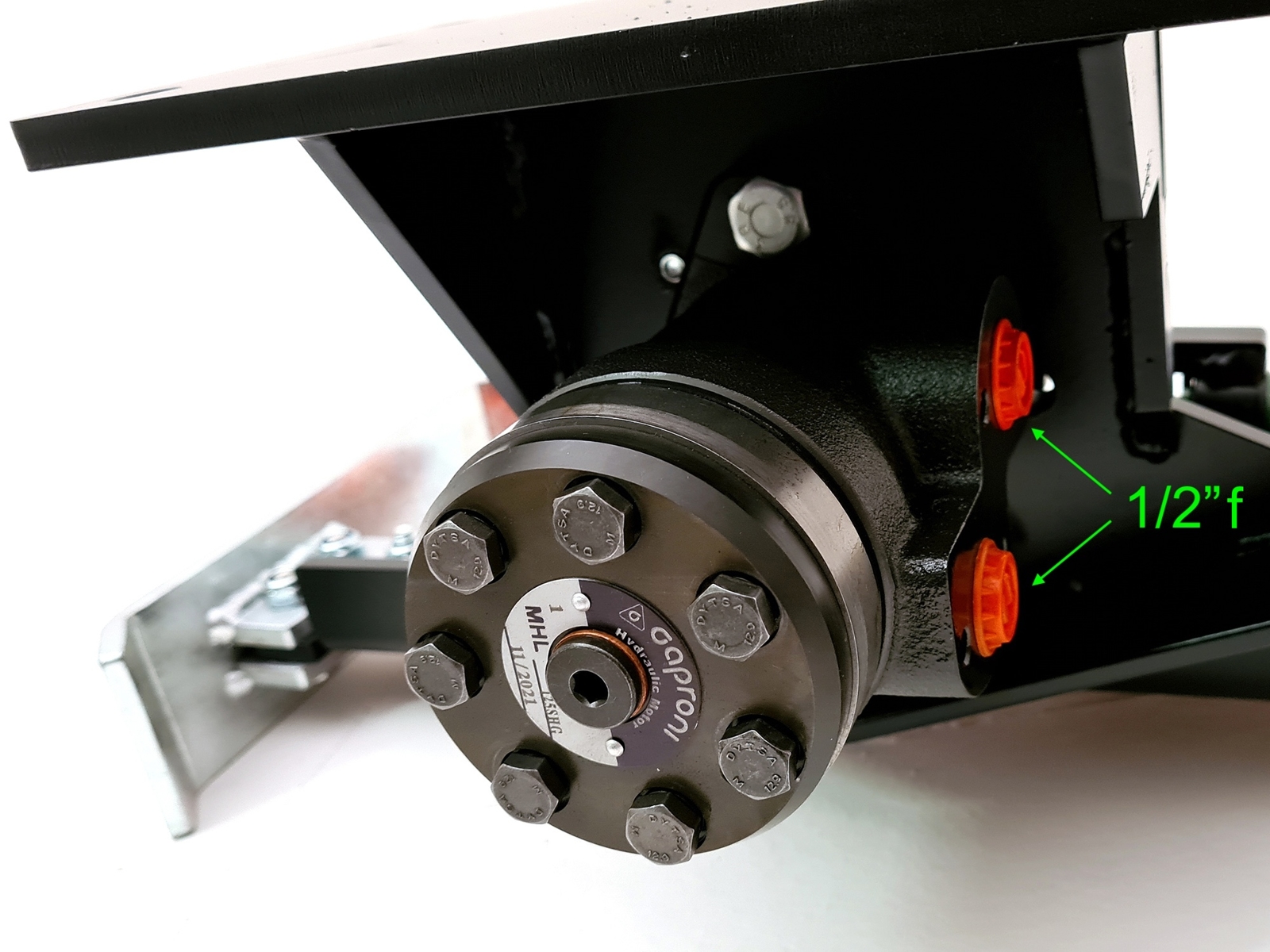

The HR-180 runs at a working pressure of 140 to 180 bar (2,030 to 2,610 psi). The 100 cc Caproni hydraulic motor, with two ½ in female ports, connects to the circuit of the mini digger or the arm, and the bar is worked from the machine's controls. Blade speed depends on the oil flow, which is why the bar has to be matched to a machine of the right size. The machine must have an oil return line: above a certain flow, the excess oil goes straight back to the tank. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.
23 serrated blades and double fingers

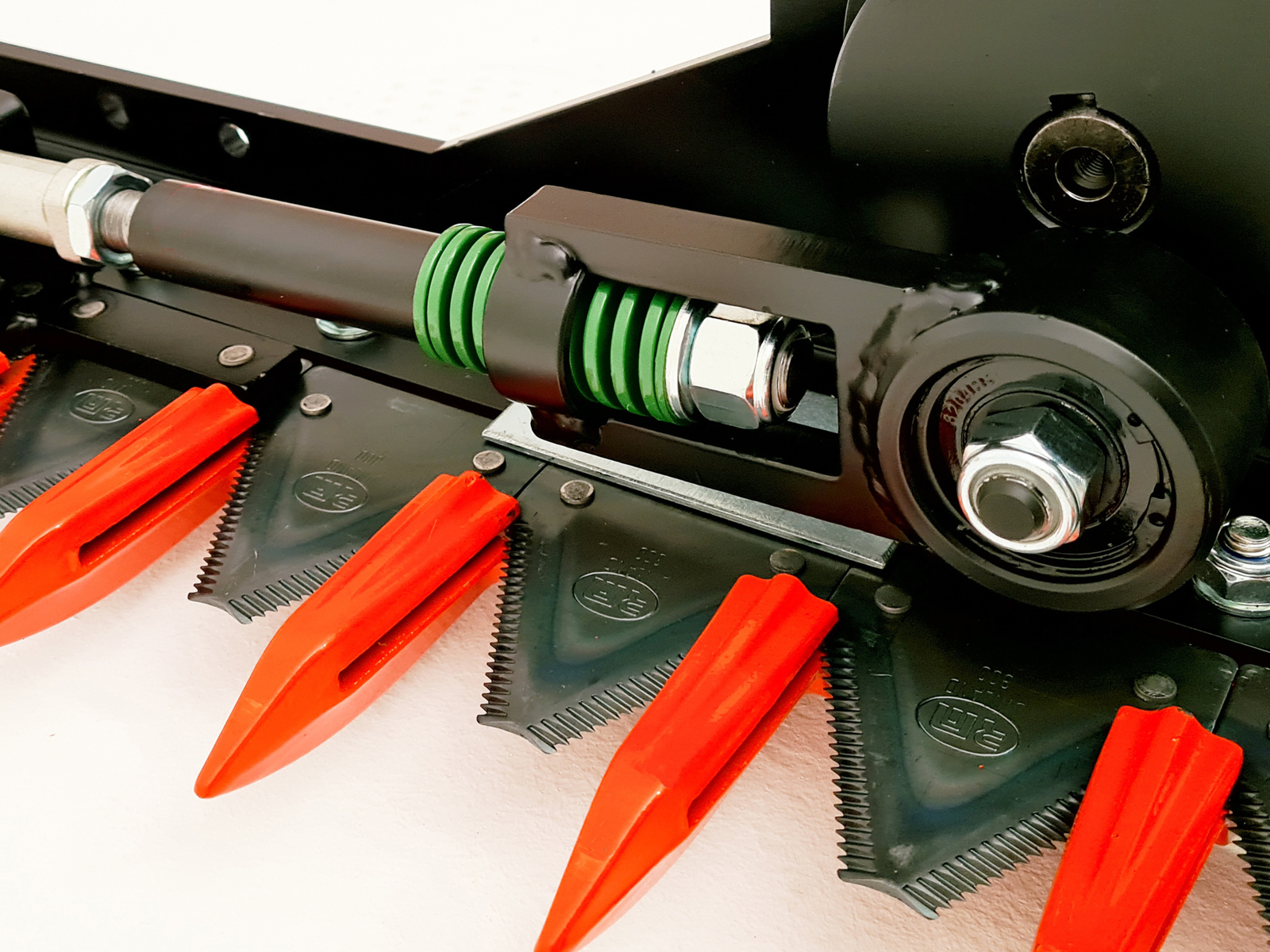

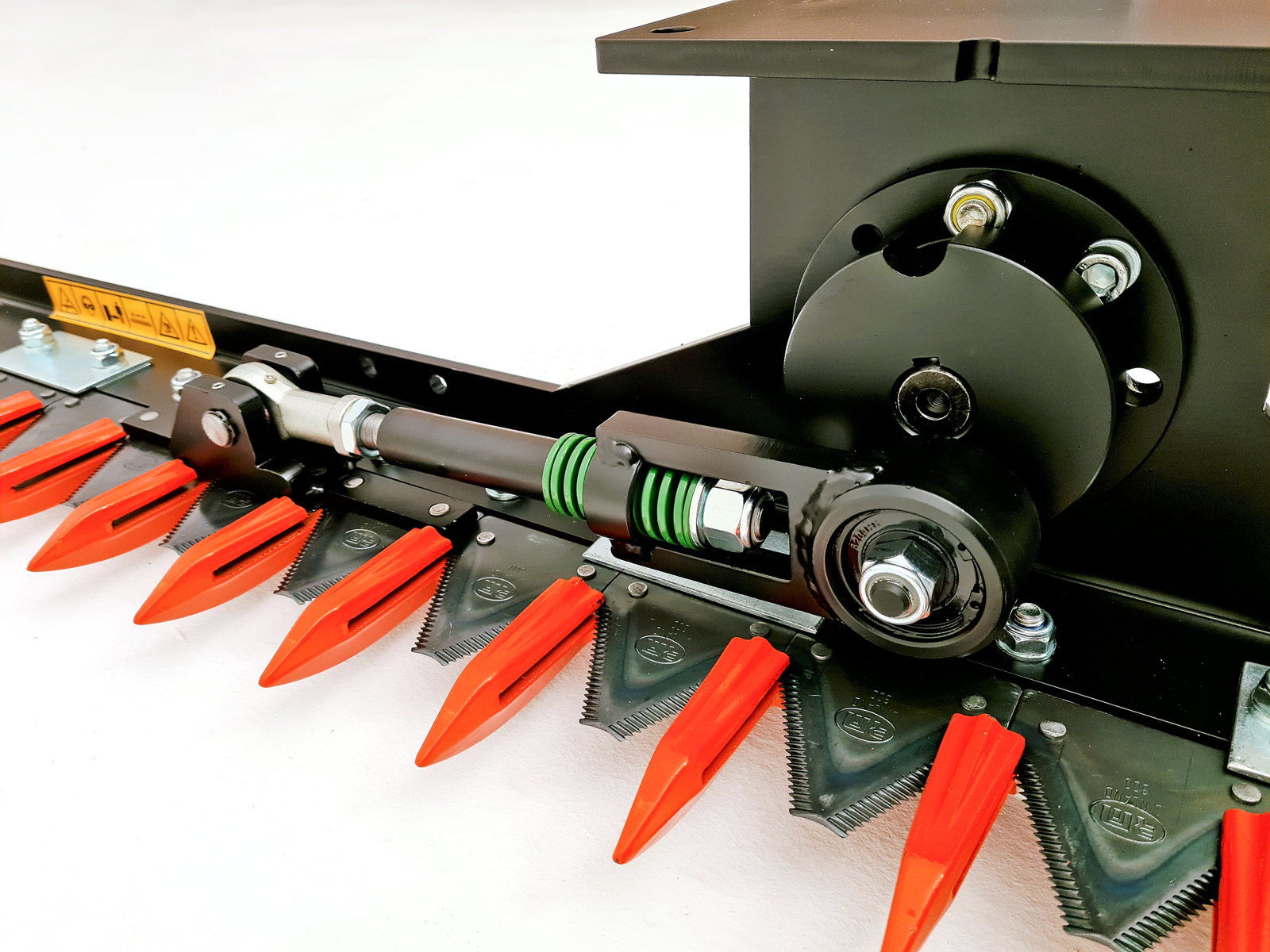

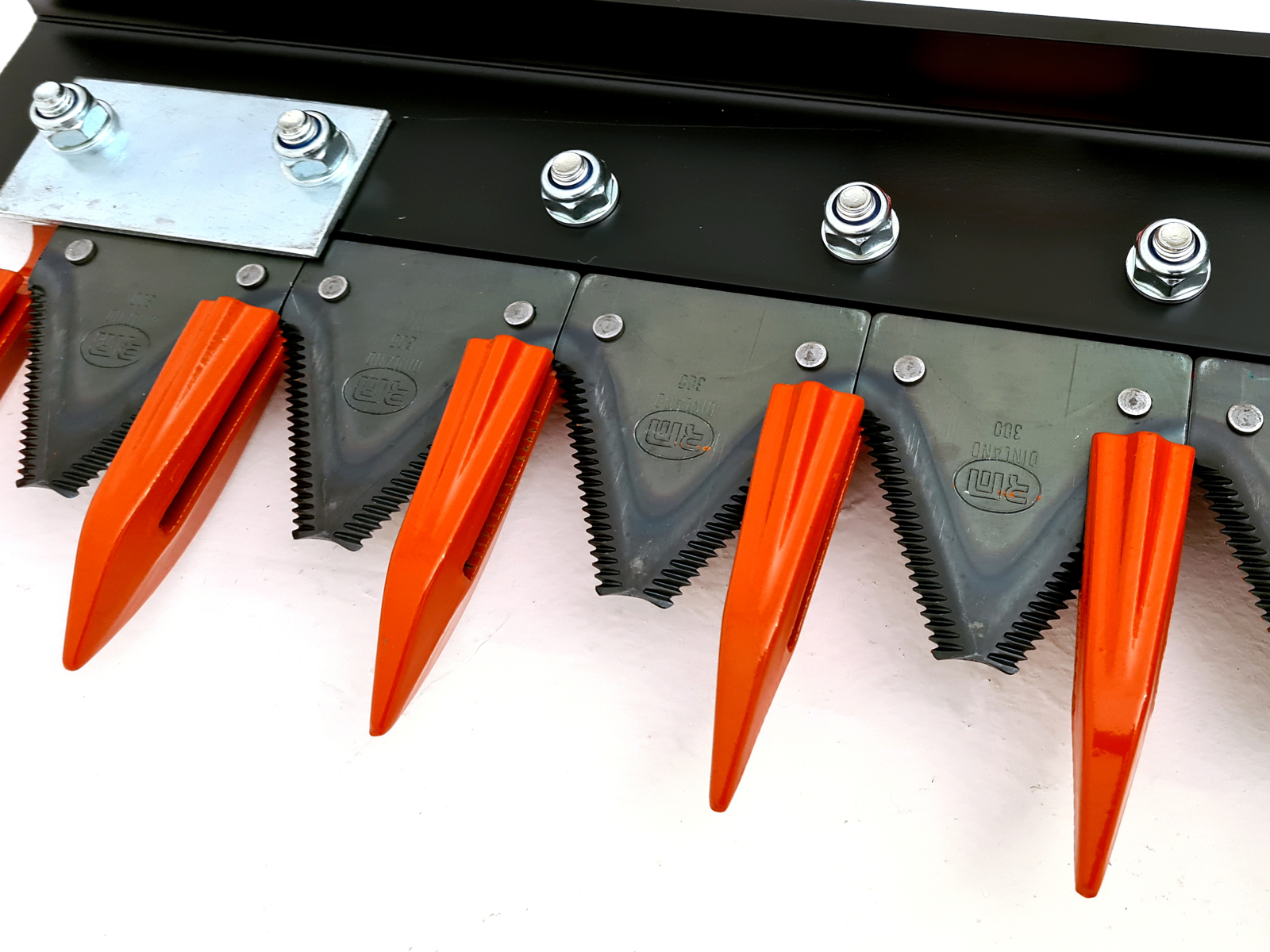

The bar has 23 triangular blades with a serrated edge: the motor drives them back and forth through a connecting rod and the blades run between the double fingers, which act as the counter-blade. It cuts hedges and small branches up to 3 cm (1.2 in) thick, with a clean cut; for grass you need the HRD double-blade bar instead. The blades are a standard type, easy to find on the market or from DELEKS: from this page you can order the set of 10 blades (COLTELLI10HRT), the set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR).
Single blade or double-blade bar
The HR is the single-blade bar with counter-blade: it cuts hedges and small branches up to 3 cm (1.2 in) and is the one most used for verges, banks and rows. The HRD double-blade bar, in the same sizes and weights, has two blades moving in opposite directions: it cuts hedges and grass, with branches up to 2 cm (0.8 in), and is the only blade bar suited to grass. For branches up to 9 cm (3.5 in) there are the HR-DISC and CUTTER disc saw bars, 100 and 160 cm (39 and 63 in).
Mounting: 4-hole plate

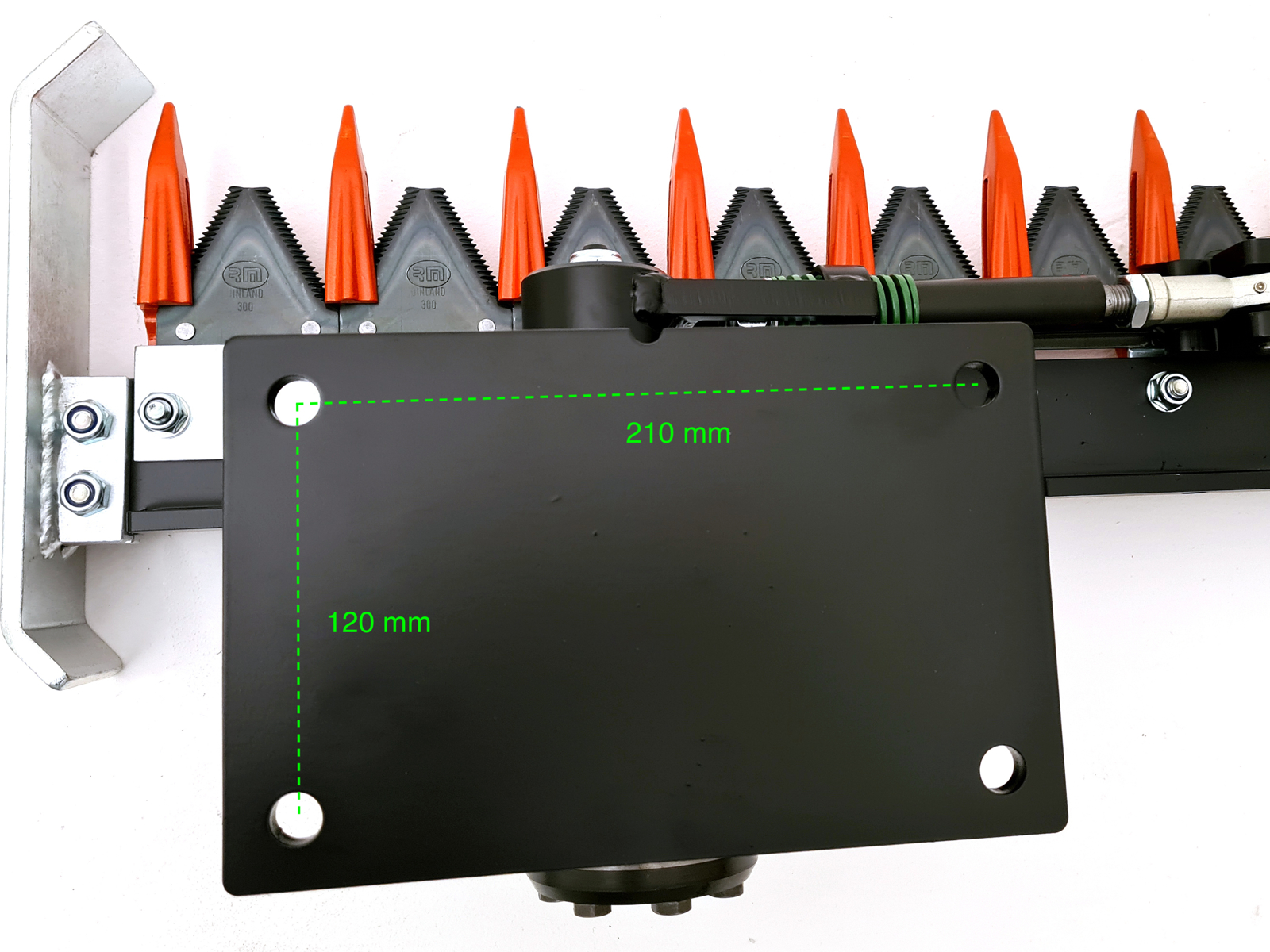

The bar comes with a 4-hole mounting plate, with hole centres of 210 × 120 mm (8.3 × 4.7 in): the dimensions are in the product images, to check against the mounting of your arm or mini digger. For a mini digger or mini excavator you can order one of the optional hitches (MS01, S40, Cangini AR15, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.
Dimensions, weight and delivery

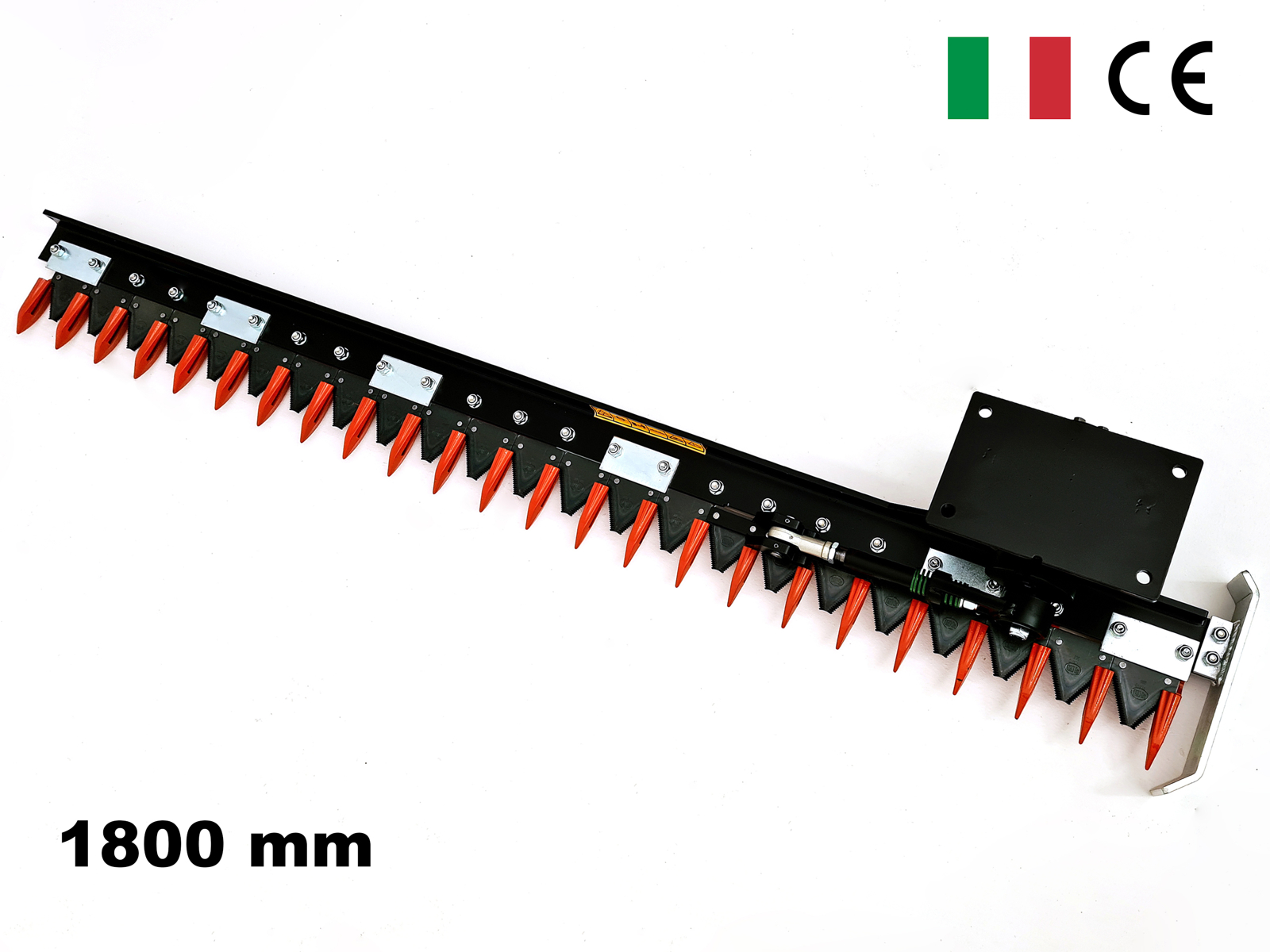

Working width 1,800 mm (70.9 in), overall width 1,880 mm (74 in), weight 70 kg (154 lb). It ships in a package of 188 × 60 × 30 cm (74 × 24 × 12 in), 80 kg (176 lb) gross and 0.34 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

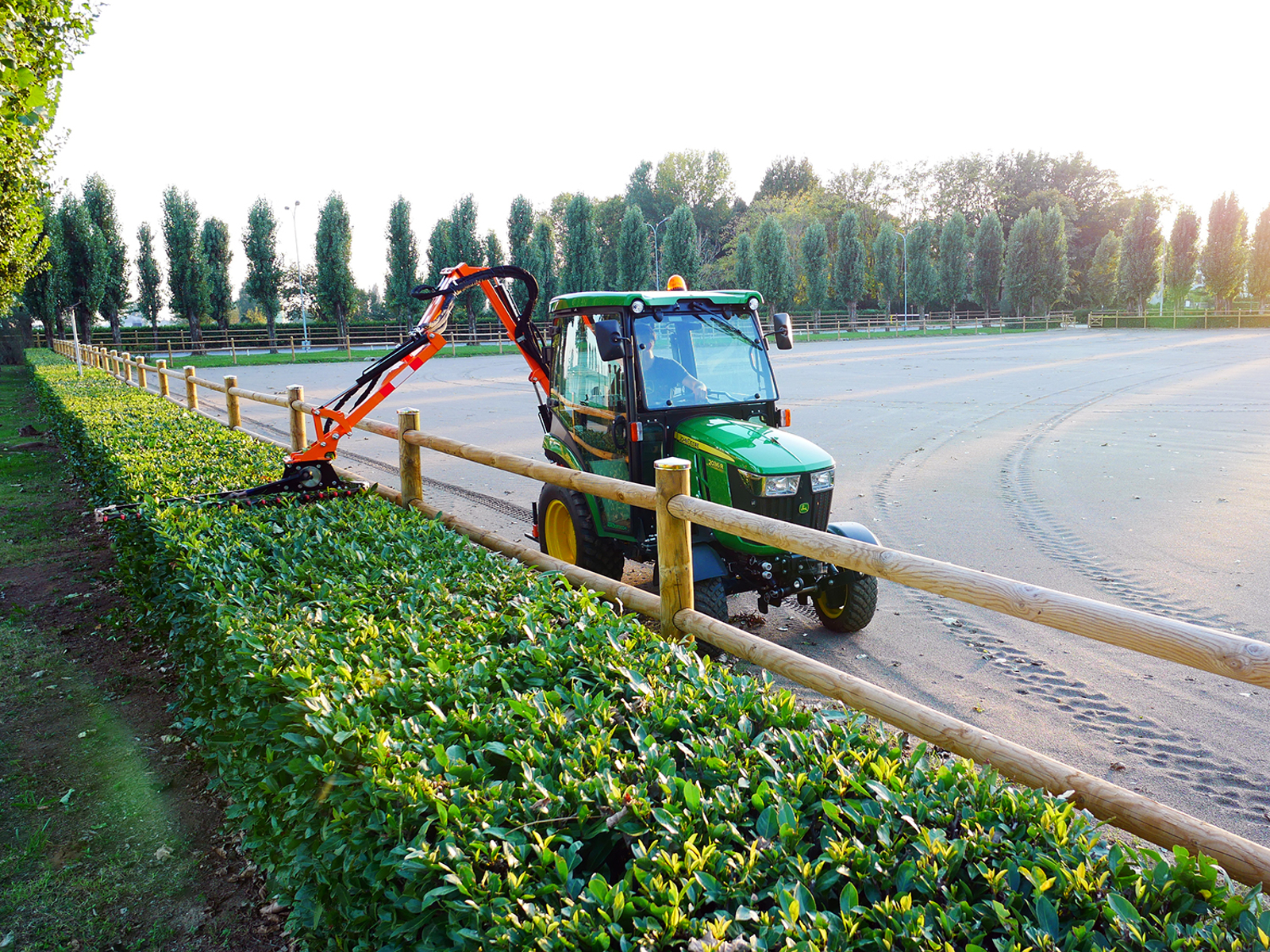

Where it works
- Boundary, garden and park hedges: a clean cut on branches up to 3 cm (1.2 in)
- Road verges, ditches and banks: hedges, regrowth and small branches
- Rows, orchards and vineyards: topping and keeping growth in check
- Tree lines and woodland edges: small branches overhanging roads and farm tracks
- Mini diggers and mini excavators of 1.8 to 2.5 tonnes, with a higher oil flow
Options and spares
From this page you can add to your order the spare set of 10 blades (COLTELLI10HRT), the spare set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR). For mounting on a mini digger or mini excavator you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Cangini AR15 hitch (ATTACCOAR15), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Which machines does the HR-180 fit?
Mini diggers and mini excavators of 1.8 to 2.5 tonnes with an auxiliary hydraulic line; it is also the bar of the DELEKS® AIRONE-TR arms. For smaller mini diggers and for the other arms there is the HR-180-S. Among the DELEKS® mini diggers and mini excavators, it fits the S180.
HR-180 or HR-180-S: which one?
They are the same bar with two motors: the HR-180-S has the 50 cc motor, for mini diggers of 1.3 to 1.8 tonnes; the HR-180 has the 100 cc motor, for those of 1.8 to 2.5 tonnes. You do not choose by the job, which is the same, but by the oil flow of your mini digger.
Can I fit the HR-180 on a smaller mini digger?
For the same oil flow the 100 cc motor drives the blades more slowly than the 50 cc one: below 1.8 tonnes the right bar is the HR-180-S.
Is 1.8-2.5 tonnes a hard limit?
No, it is a guide: what counts is the oil flow of the mini digger's auxiliary line. Check it before ordering: if in doubt, just tell us the make and model of your machine.
Does it mount directly on a tractor?
No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.
What pressure and oil flow does it need?
A working pressure of 140 to 180 bar (2,030 to 2,610 psi). The machine must have an oil return line. For the flow, go by the size of the machine, a mini digger of 1.8 to 2.5 tonnes: if in doubt, just tell us the make and model of your machine.
What size branches does it cut?
Hedges and small branches up to 3 cm (1.2 in) thick. For branches up to 9 cm (3.5 in) there are the HR-DISC and CUTTER disc saw bars.
Does it cut grass too?
No: for grass you need the HRD double-blade bar, with two blades moving in opposite directions. The HR-180 is made for hedges and small branches.
What is the difference between the HR and the HRD?
The HR has a single blade with counter-blade and cuts hedges and small branches up to 3 cm (1.2 in); the HRD is the double-blade bar, for hedges and grass, with branches up to 2 cm (0.8 in). Sizes and weights are the same: 130, 160 and 180 cm, from 58 to 70 kg.
How does it mount on a mini digger?
With the 4-hole plate (210 × 120 mm) and one of the optional hitches: MS01, S40, Cangini AR15, Morin-type ACB+ M0 or M1, or a made-to-measure hitch.
Can the blades be replaced?
Yes: they are a standard type. From this page you can order the set of 10 blades (COLTELLI10HRT), the set of 10 blades (COLTELLI10HRTCA) and the 5 double fingers (5DENTIDOPPIHR).
Which size should I choose?
The three sizes, 130, 160 and 180 cm, weigh 58, 62 and 70 kg: the shortest is easier to handle with the arm fully extended, the longest cuts a wider strip at each pass.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1800.0 mm |
| Overall width | 1880.0 mm |
| Weight | 70.0 kg |
| Maximum cutting diameter | 20.0-30.0 mm |
| Number of Blades | 23 |
| Working pressure | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min |
| Gross shipping weight | 80 kg |
| Package volume | 0.34 m3 |
| Packing sizes | 1880.0*600.0*300.0 mm |
