This page needs JavaScript activated to work. Cultivator for tractor - width 140cm, 7 tynes for soil preparation and weeds disrupting mod. DE-140/7
FREE SHIPPING ALL OVER BELGIUM

Estimated delivery: 20-25 days from order confirmation. You will receive a phone notification!

Chuck Norris offers you 5%DISCOUNTon the second product VIEW THE DETAILS

Cultivator for tractor - width 140cm, 7 tynes for soil preparation and weeds disrupting mod. DE-140/7

4.6

1322 reviews

Available
Code DE140
EAN 8053470230301
View all details.

PAY IN 3 INSTALLMENTS

Bancontact
TOTAL
752,00VAT incl.
Free shipping

VIDEO
Field test
Field test

DETAILS

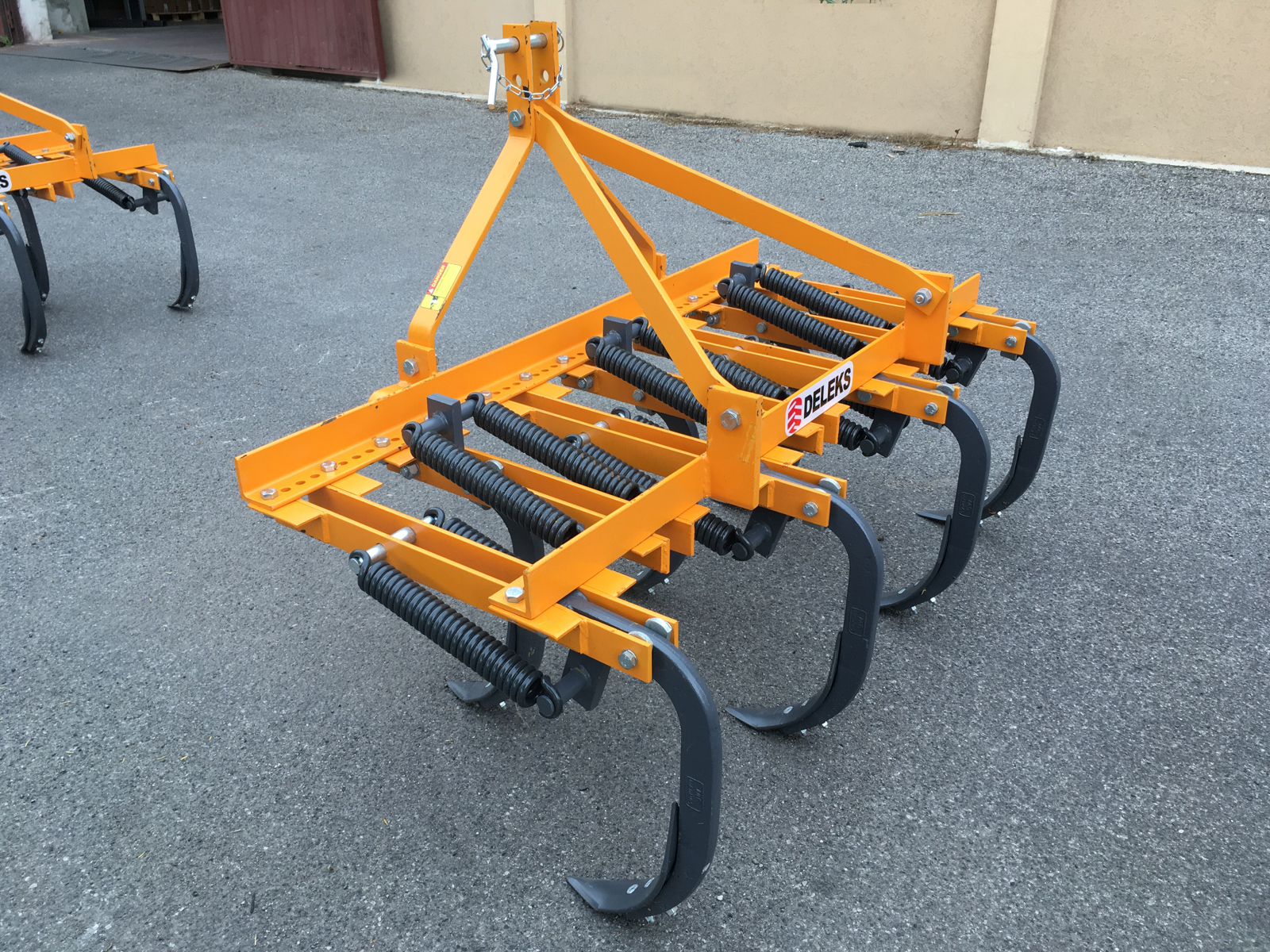

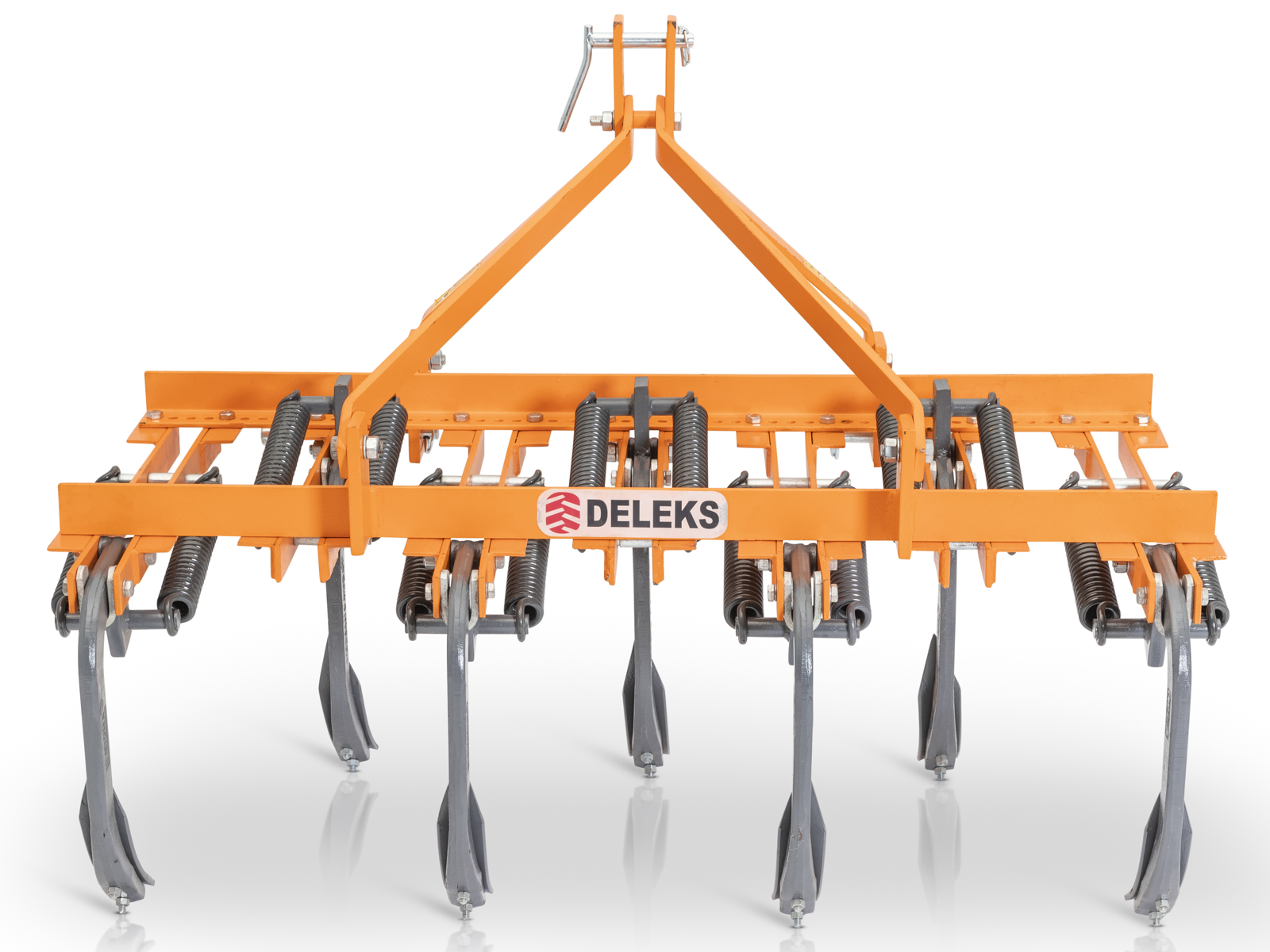

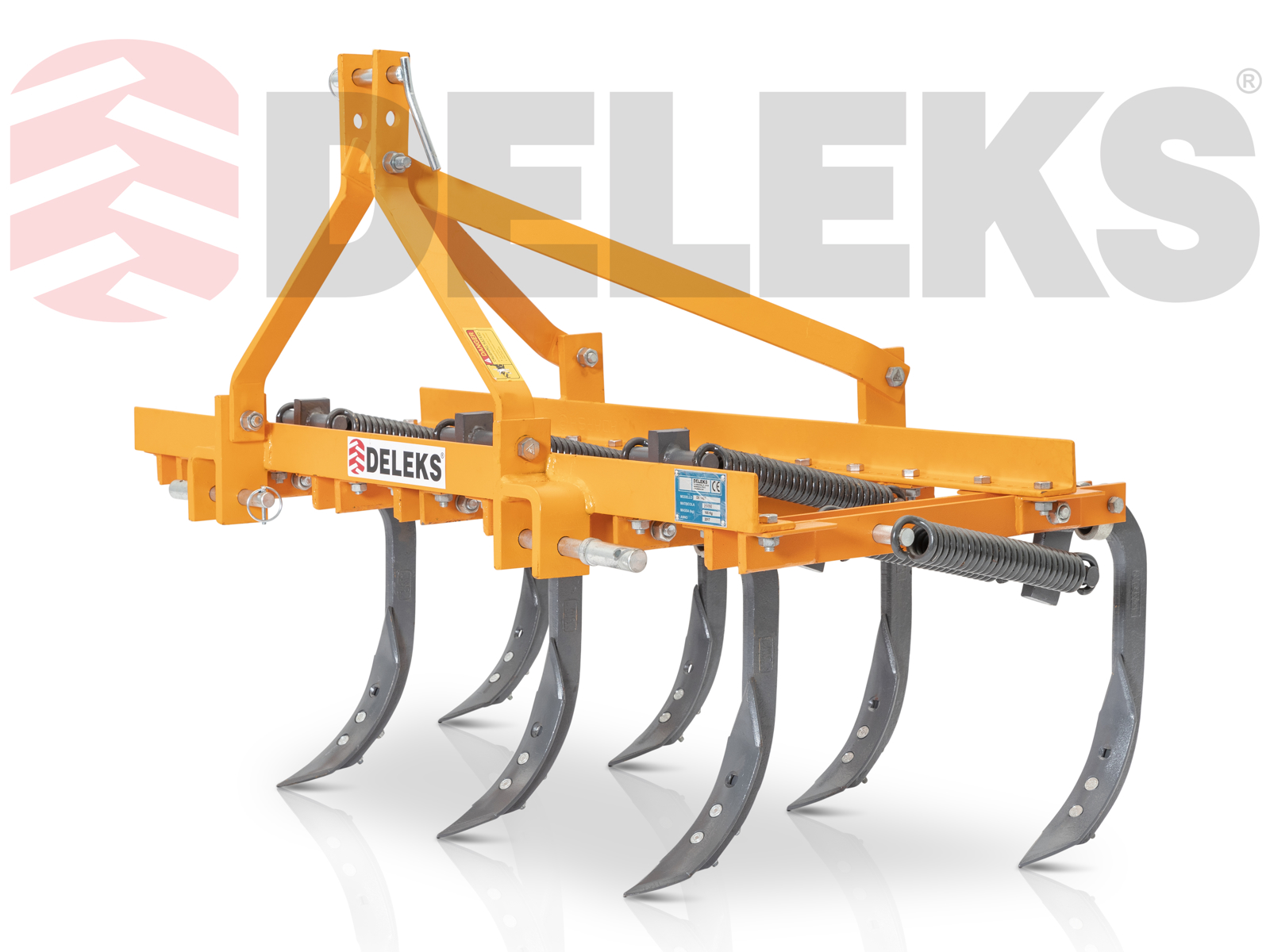

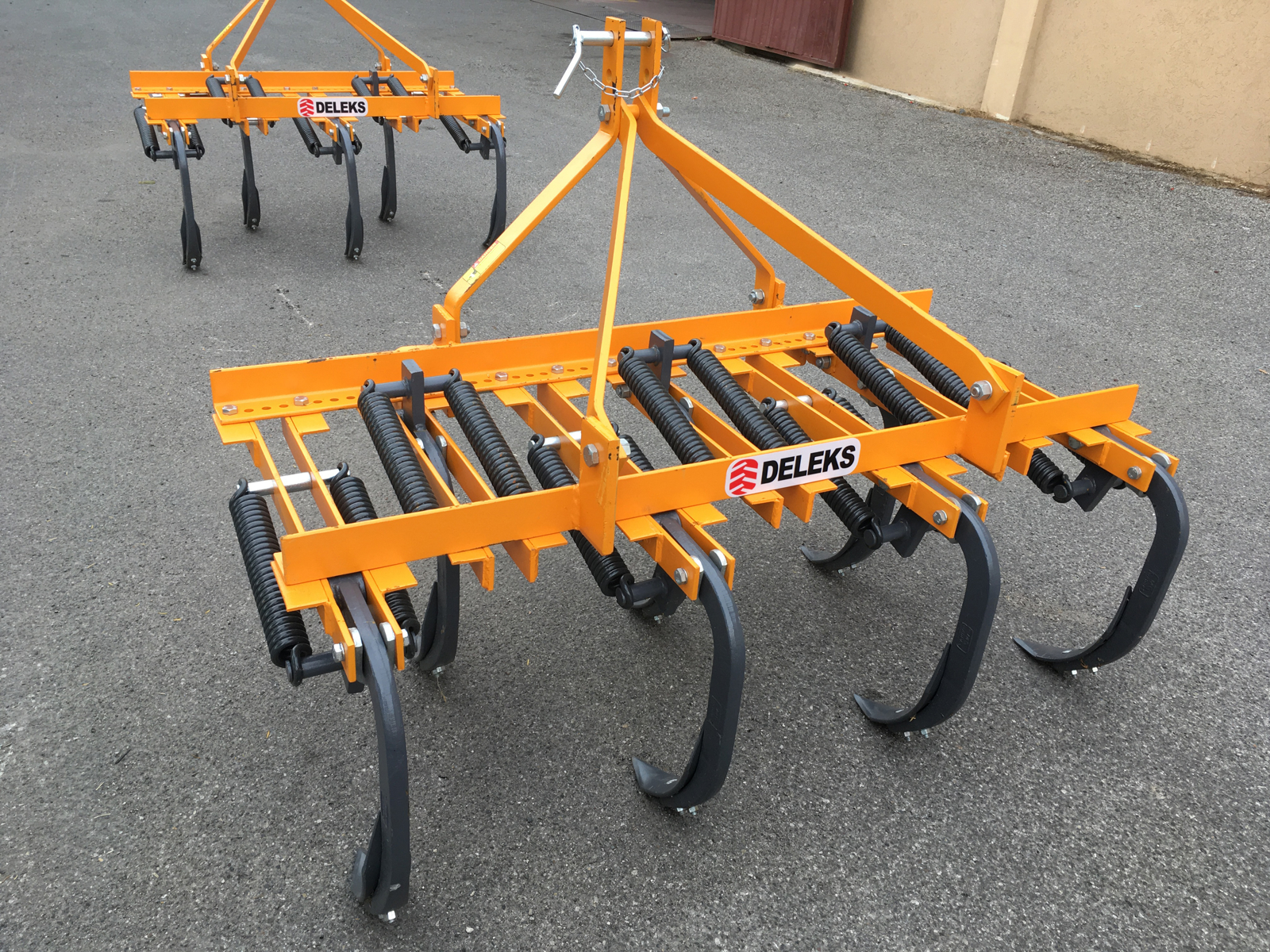

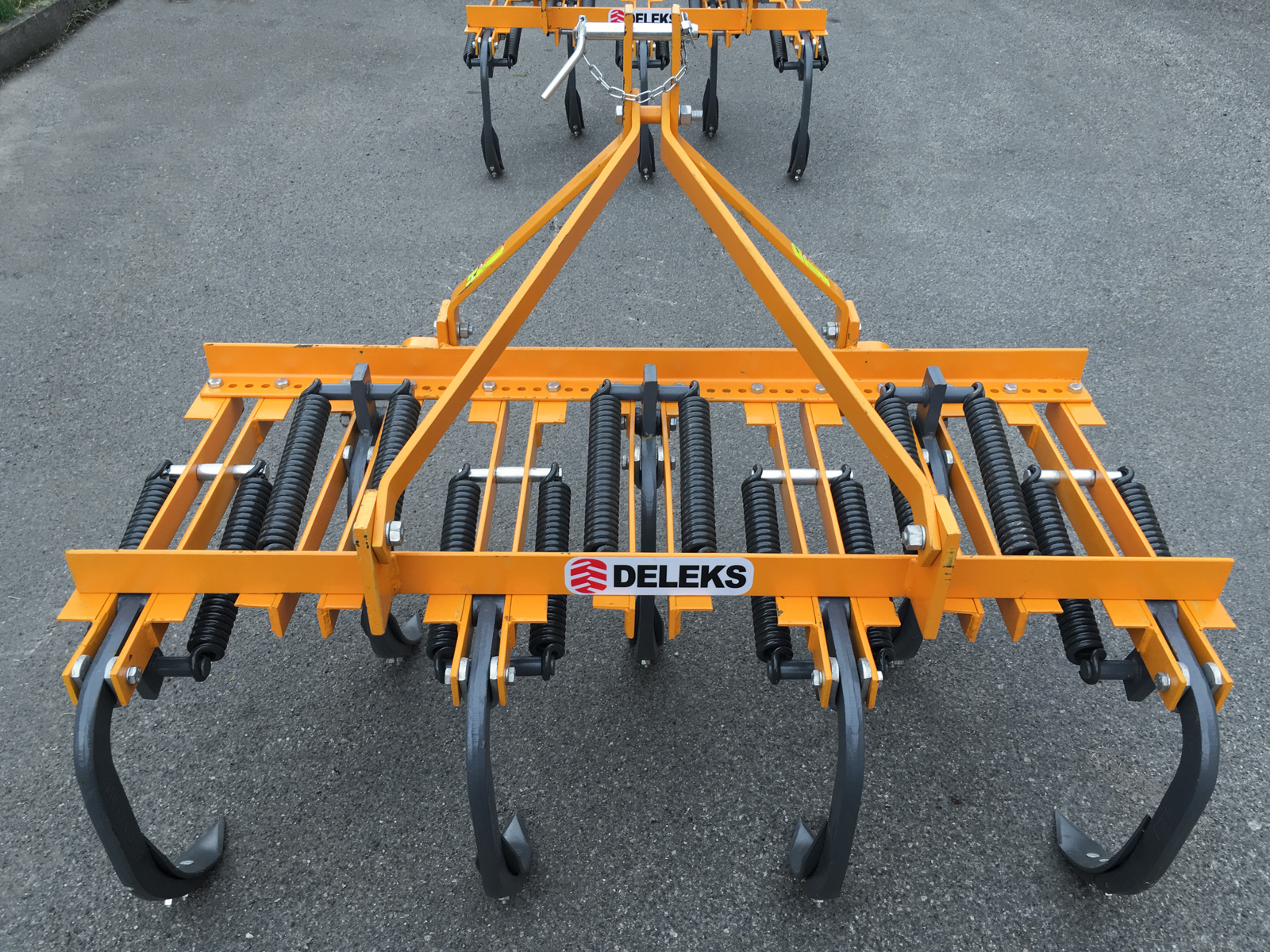

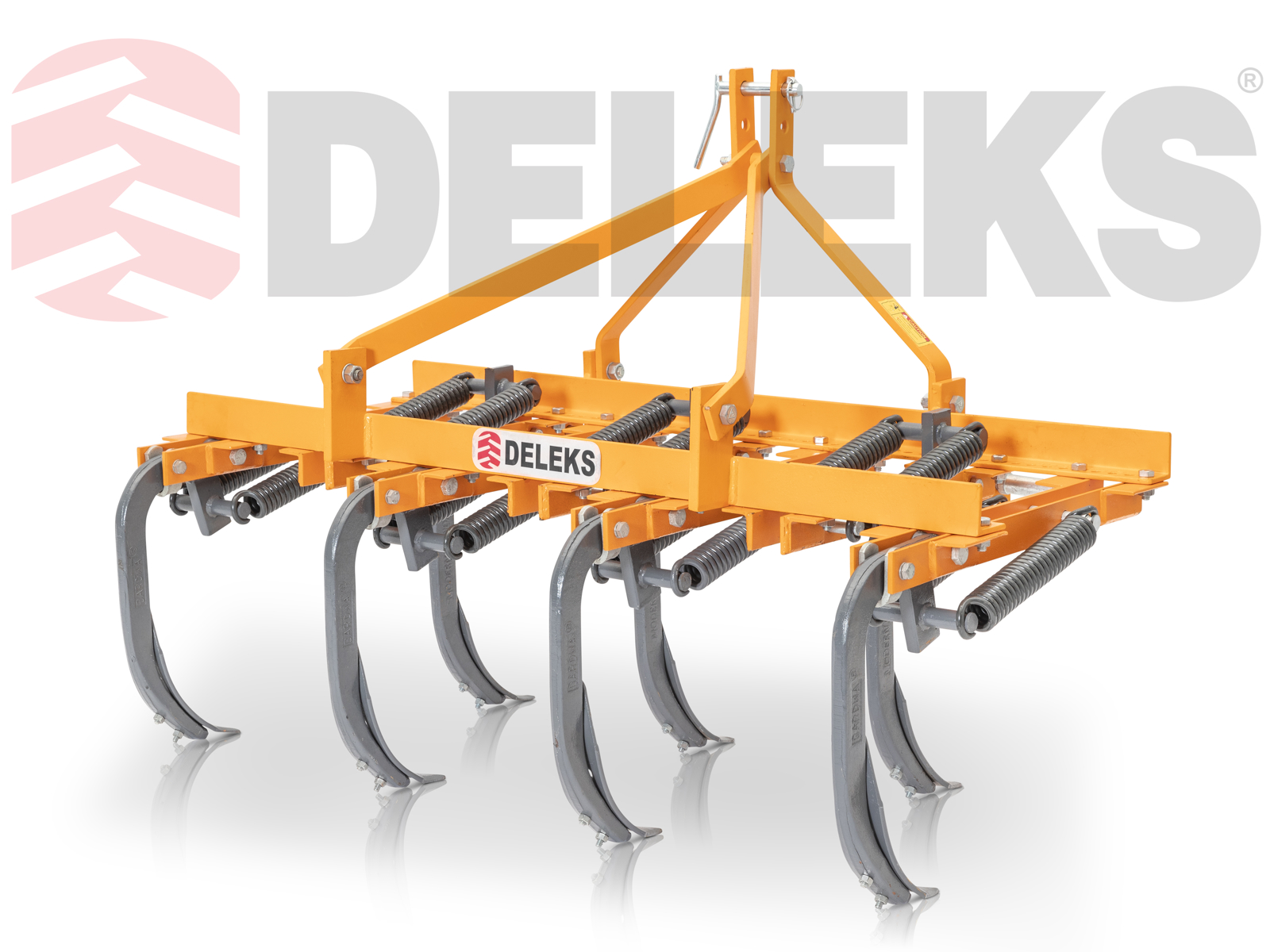

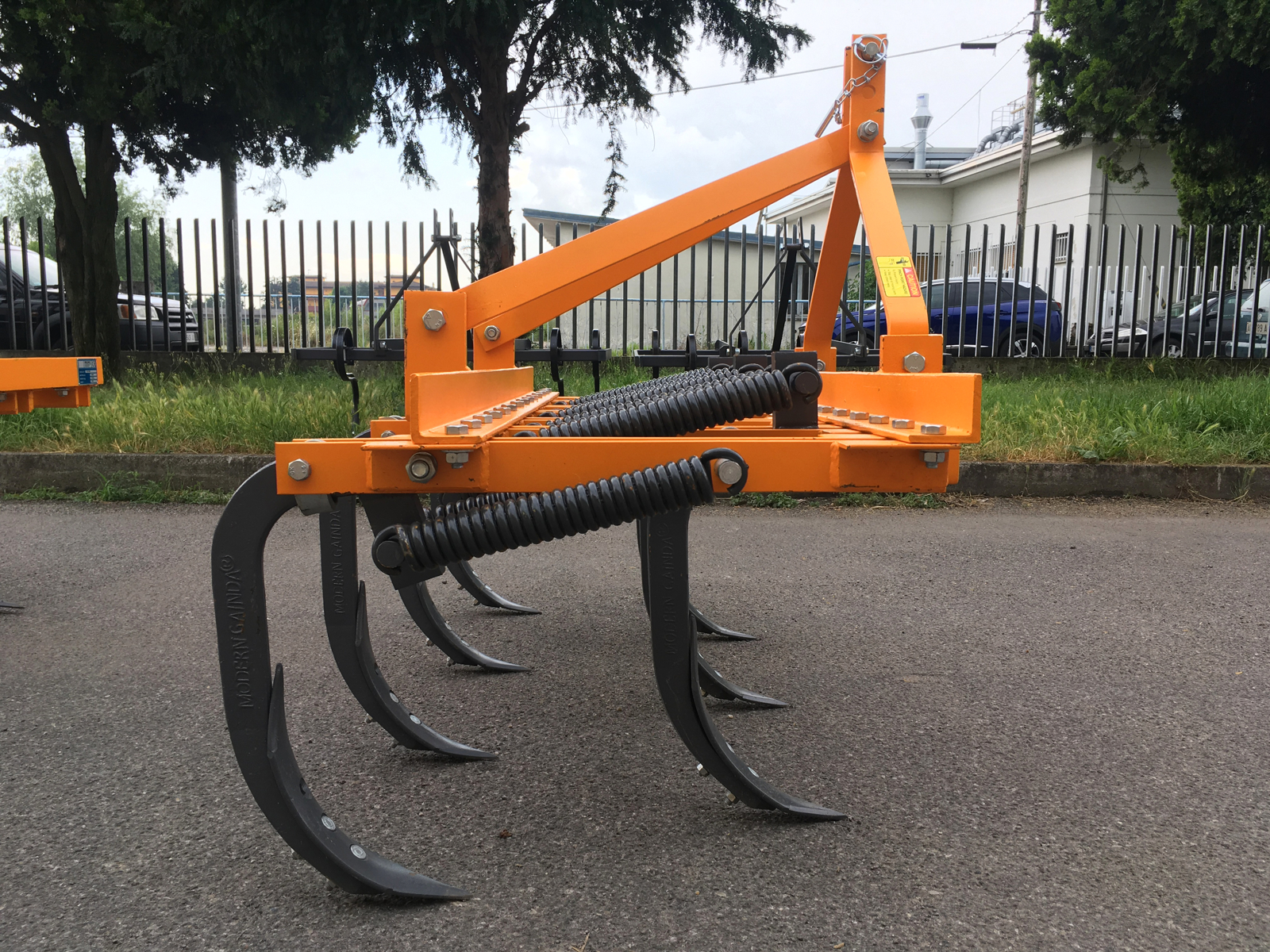

Mounted field cultivator DELEKS® for Compact Tractors like Kubota, Iseki, New Holland - 142cm / 7 tynes / 165kg - Replaceable and reversible shank.


OVERVIEW

The DE Cultivator has been designed to prepare the soil in careful patterns, sparing the crop plants but disrupting the weeds Designed to be used for loosening and aerating soil to a depth of approximately 38cm depending on the type of land and the horsepower of the tractor. If one tyne strikes a hidden object, the others continue to work at the correct depth. Ideal for 22-45HP Japanese tractors Kubota B, and compact tractors John Deere 2-3 and New Holland Boomer 30-35. Universal 3 point linkage Cat.1-2. EC Declaration of Conformity. 2 year Warranty.

Not suitable for crawler tractors.




BENEFITS & FEATURES

The shape of the tines allow homogeneous soil preparation work, with a working depth of 35cm.

Greatly reduces the build up of stagnated water.

Helps to distribute damp among worked soil for over-all more fertile growing conditions.

Heat forged tines to withstand hard & stony conditions.

Strong channel frame for the toughest farm operations.

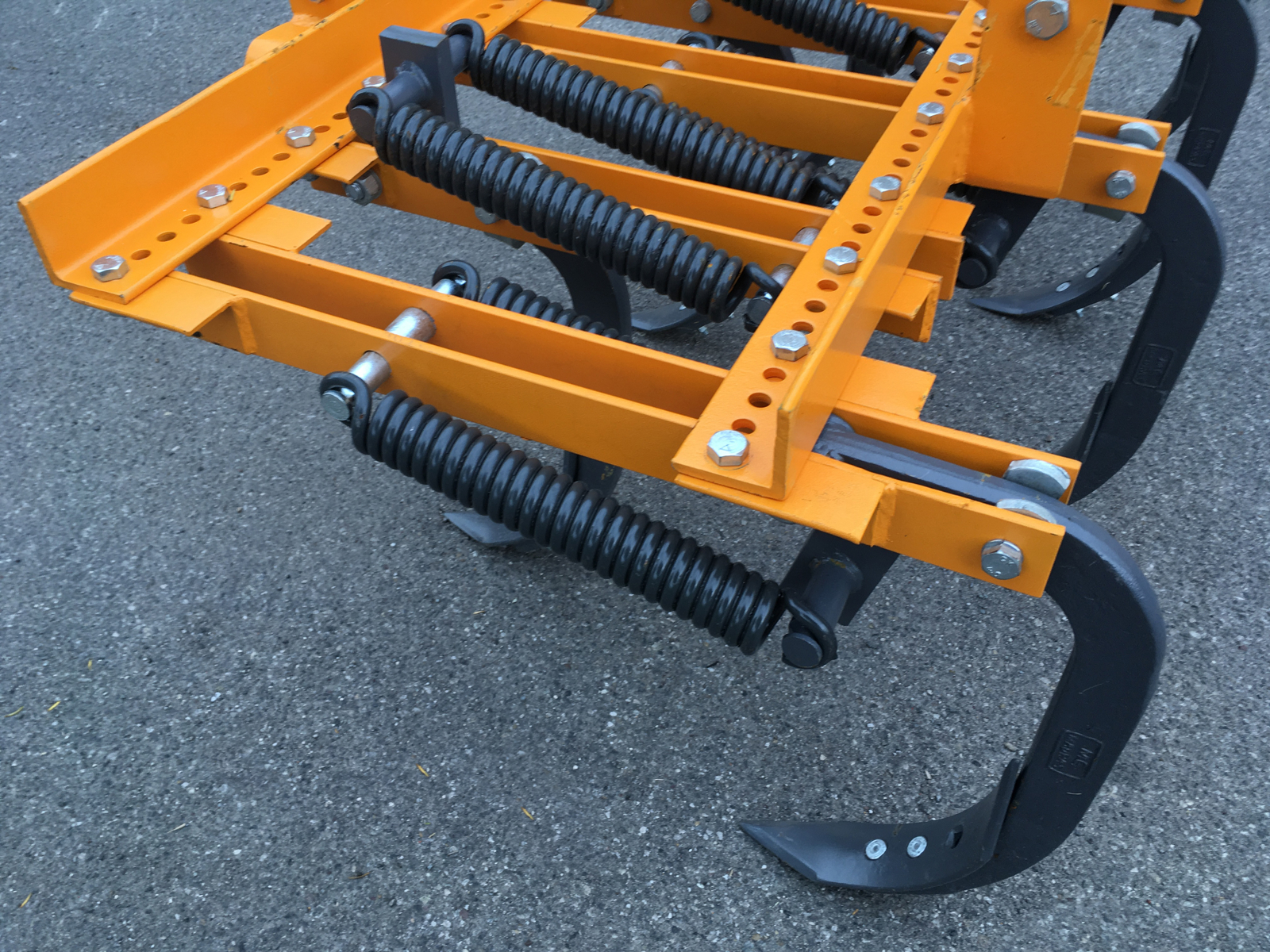

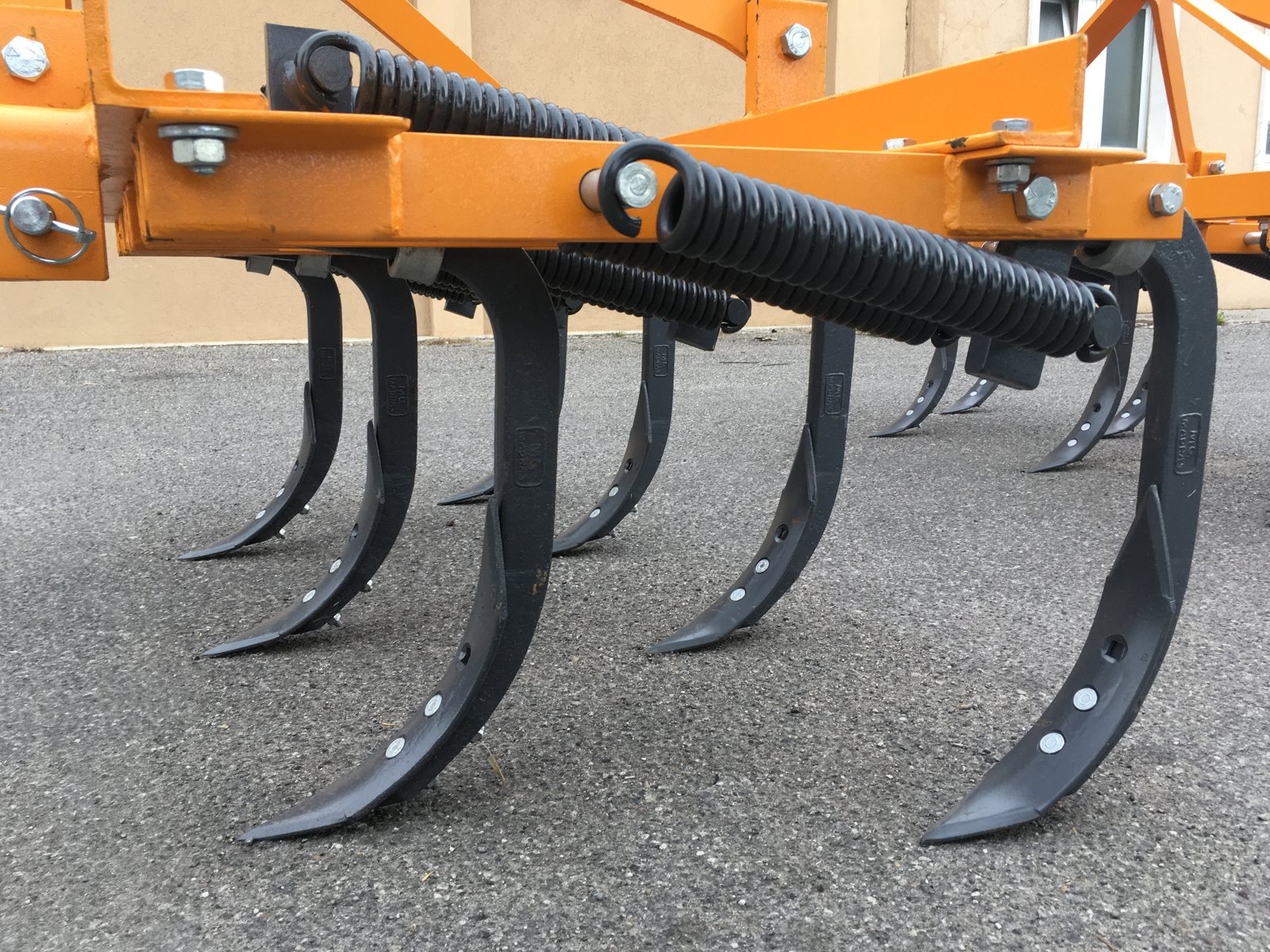

Each tine is supported by two springs for additional strength.

Replaceable and reversible shank.



*Articles delivered disassembled and placed on pallet. Please be aware of the possibility of minor scratches due to the warehouse handling procedures.


CHARACTERISTICS

Characteristic Units metric
Overall width 1420.0 mm
Weight 165.0 kg
Overall height 1020.0 mm
Tractor Power Range 22 - 45 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
3 point linkage Thickness 12.0 mm

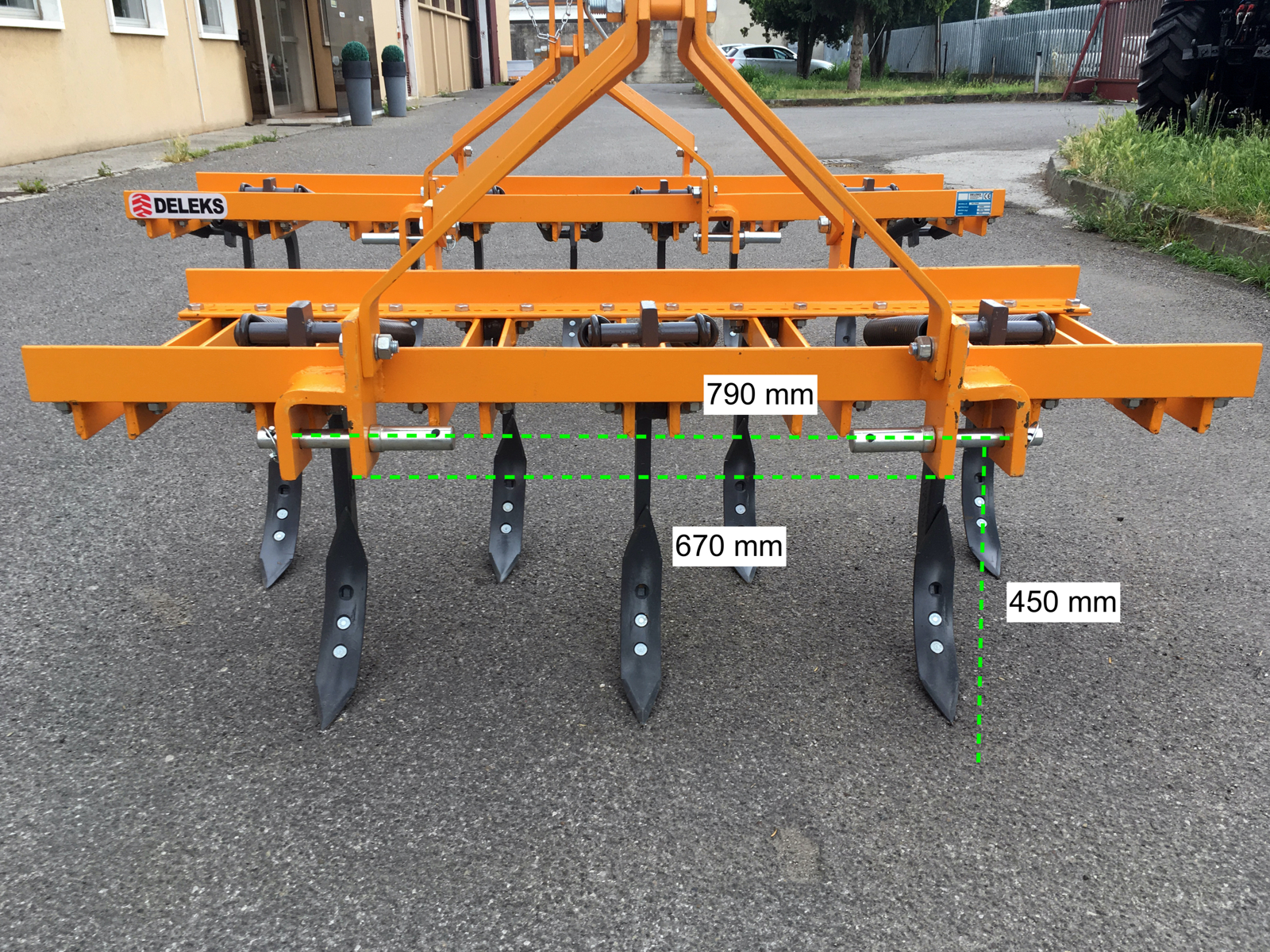

Spacing between the 2 lower points 670.0 - 790.0 mm
Overall length 800.0 mm
Distance between the 2 lower points and ground 430.0 mm

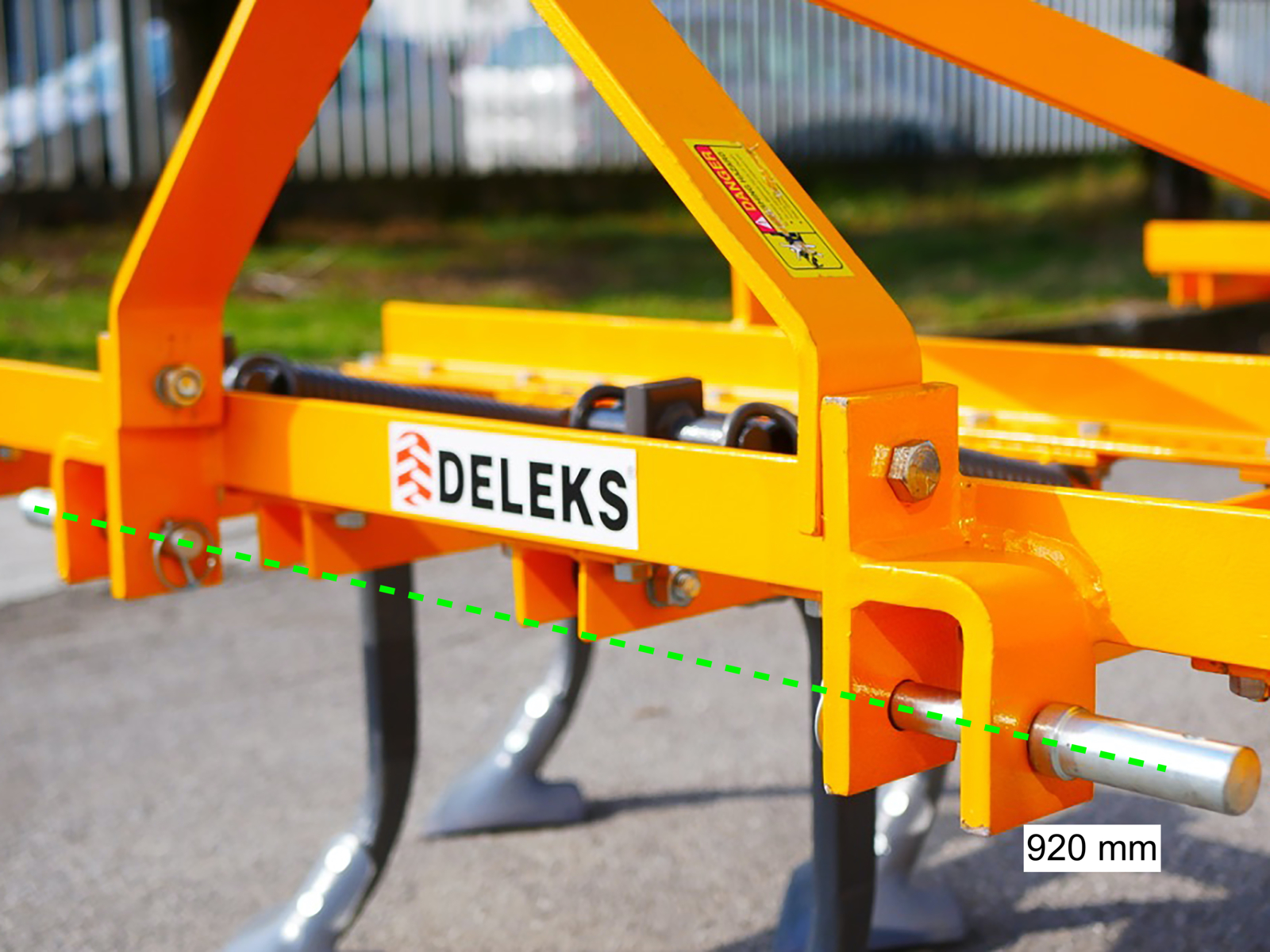

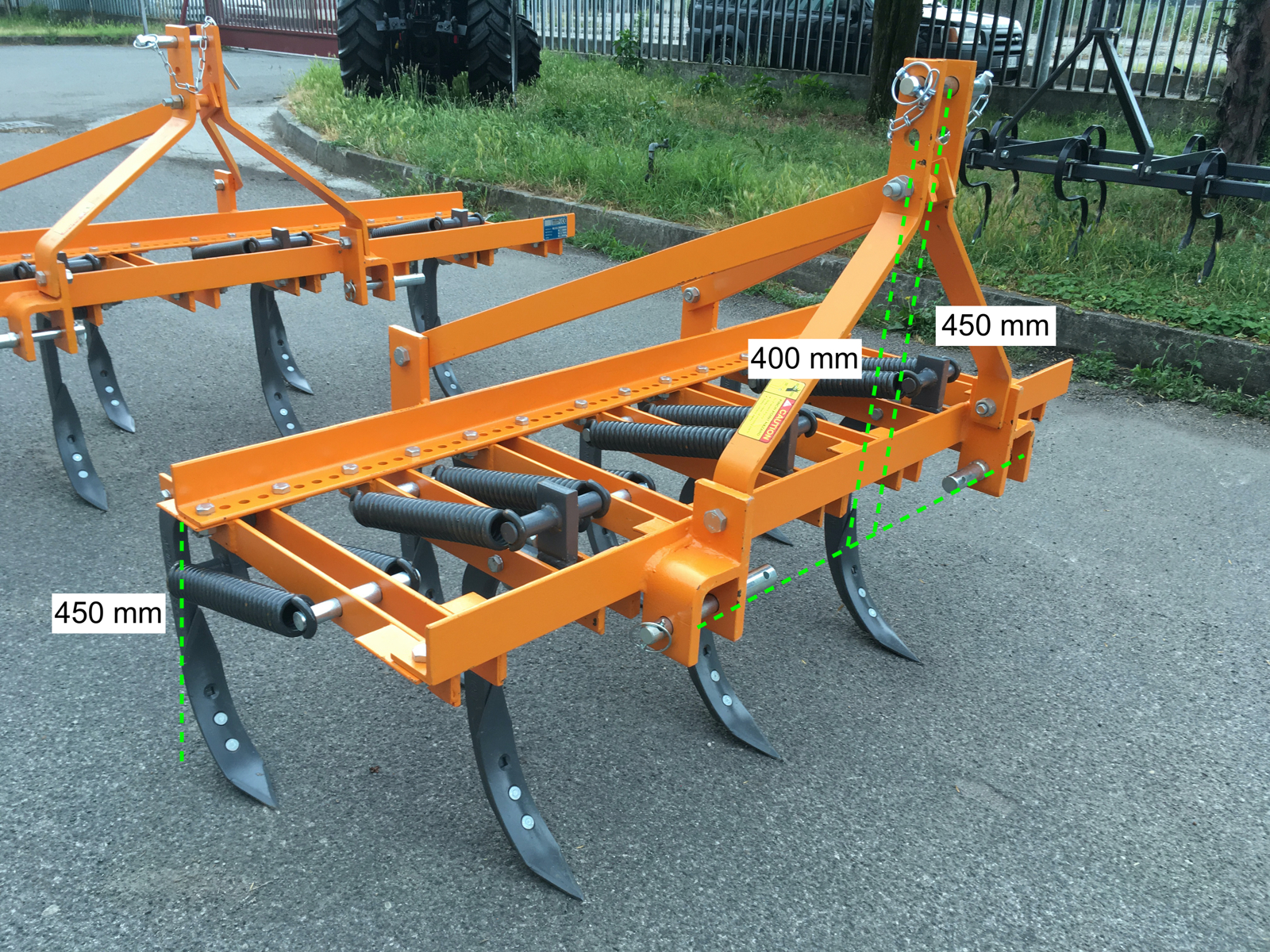

Other sizes See pictures
Number of tines 7
Tines Height 450.0 mm
Number of Shock absorbers per tine 2
Tine Width (single tine) 23.0 mm
Tine Thickness 48.0 mm
Standard distances between tines 154.0 mm
Removable blades: Thickness 8.0 mm
Removable blades: Width
Removable blades: Width 58.0 mm
Removable blades: Length 260.0 mm
Effective Working width 1330.0 mm
Working Depth 350.0 mm
Packing sizes 1420.0*800.0*400.0 mm
DETAILS
CHARACTERISTICS

DETAILS

CLOSE

Mounted field cultivator DELEKS® for Compact Tractors like Kubota, Iseki, New Holland - 142cm / 7 tynes / 165kg - Replaceable and reversible shank.


OVERVIEW

The DE Cultivator has been designed to prepare the soil in careful patterns, sparing the crop plants but disrupting the weeds Designed to be used for loosening and aerating soil to a depth of approximately 38cm depending on the type of land and the horsepower of the tractor. If one tyne strikes a hidden object, the others continue to work at the correct depth. Ideal for 22-45HP Japanese tractors Kubota B, and compact tractors John Deere 2-3 and New Holland Boomer 30-35. Universal 3 point linkage Cat.1-2. EC Declaration of Conformity. 2 year Warranty.

Not suitable for crawler tractors.




BENEFITS & FEATURES

The shape of the tines allow homogeneous soil preparation work, with a working depth of 35cm.

Greatly reduces the build up of stagnated water.

Helps to distribute damp among worked soil for over-all more fertile growing conditions.

Heat forged tines to withstand hard & stony conditions.

Strong channel frame for the toughest farm operations.

Each tine is supported by two springs for additional strength.

Replaceable and reversible shank.



*Articles delivered disassembled and placed on pallet. Please be aware of the possibility of minor scratches due to the warehouse handling procedures.


CHARACTERISTICS

CLOSE
Characteristic Units metric
Overall width 1420.0 mm
Weight 165.0 kg
Overall height 1020.0 mm
Tractor Power Range 22 - 45 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
3 point linkage Thickness 12.0 mm
Spacing between the 2 lower points 670.0 - 790.0 mm
Overall length 800.0 mm
Distance between the 2 lower points and ground 430.0 mm
Other sizes See pictures
Number of tines 7
Tines Height 450.0 mm
Number of Shock absorbers per tine 2
Tine Width (single tine) 23.0 mm
Tine Thickness 48.0 mm
Standard distances between tines 154.0 mm
Removable blades: Thickness 8.0 mm
Removable blades: Width
Removable blades: Width 58.0 mm
Removable blades: Length 260.0 mm
Effective Working width 1330.0 mm
Working Depth 350.0 mm
Packing sizes 1420.0*800.0*400.0 mm

Optional

7 blades Cultivator
Optional special price. -11,20 112,00VAT incl. 100,80VAT incl.
Available

DE-145/7

7 V blades Cultivator
Optional special price. -12,60 126,00VAT incl. 113,40VAT incl.
Not available Notify me

DE-145/7, DE-165/7

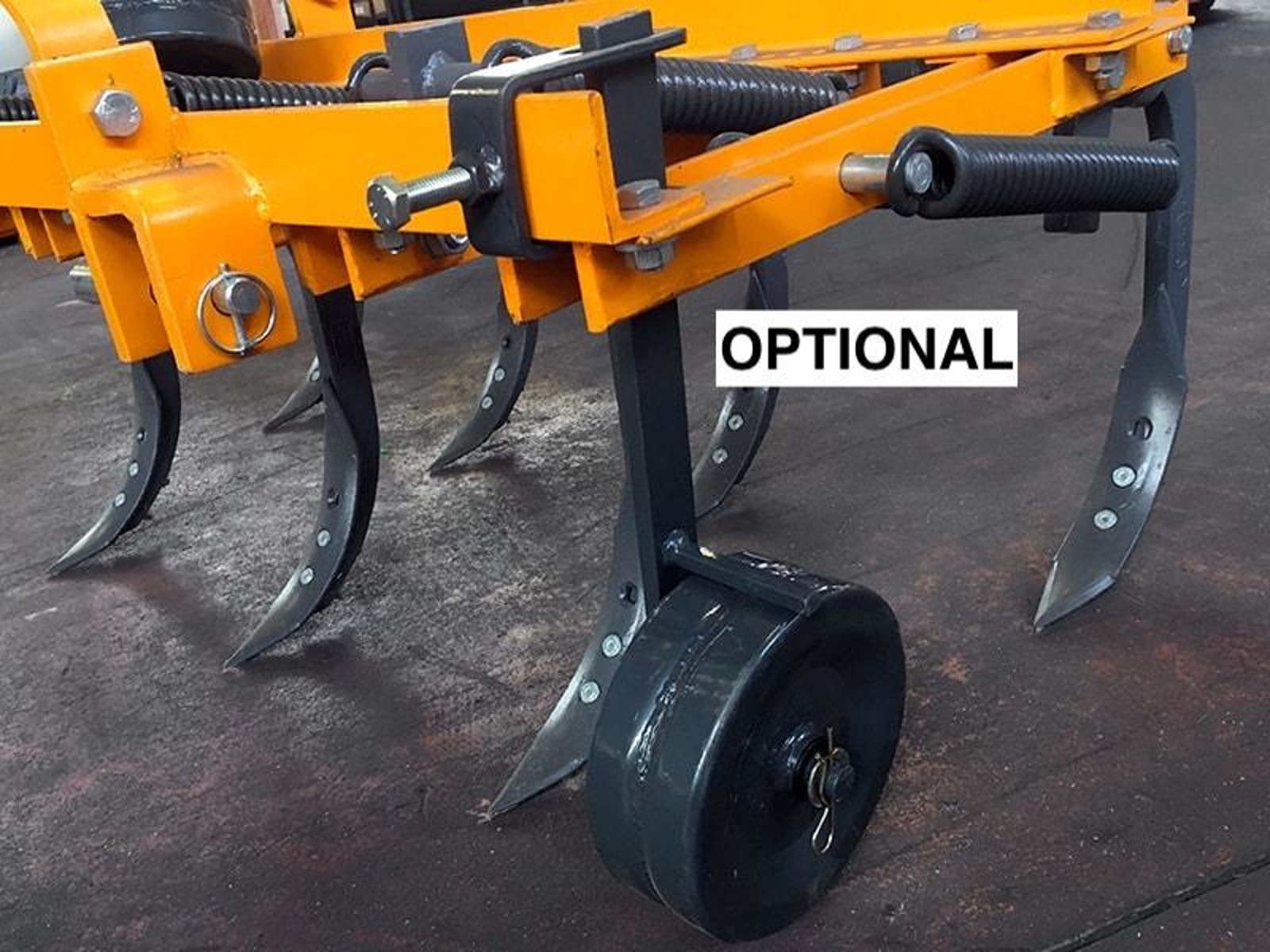

Couple of wheels + attachments for cultivators
